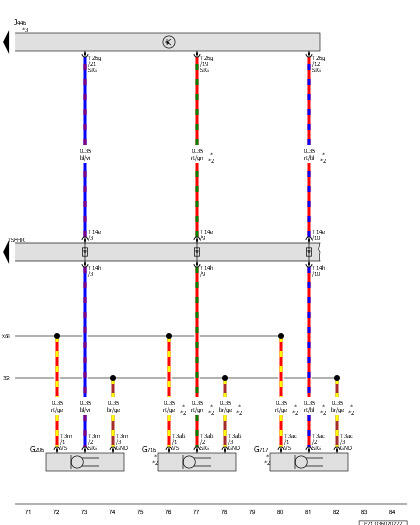

Right Rear Parking Aid Sensor, Parking Aid Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G206

Right Rear Parking Aid Sensor

G716

Left Rear Parallel Parking Assistance Sensor

G717

Right Rear Parallel Parking Assistance Sensor

J446

Parking Aid Control Module

T3ab

3-Pin Connector, Gray

T3ac

3-Pin Connector, Gray

T3m

3-Pin Connector, Black

T14e

14-Pin Connector, Black

T14h

14-Pin Connector, Black

T26g

26-Pin Connector, Black

TSFHR

Coupling Point on Right Rear Bumper

352

Parking Aid Ground Connection (in Rear Bumper Wiring Harness)

X68

Parking Aid Connection (in Rear Bumper Wiring Harness)

*

For Vehicles with Parallel Parking Assistance

*2

From November 2021

*3

Refer to the Applicable Multimedia System Wiring Diagram
