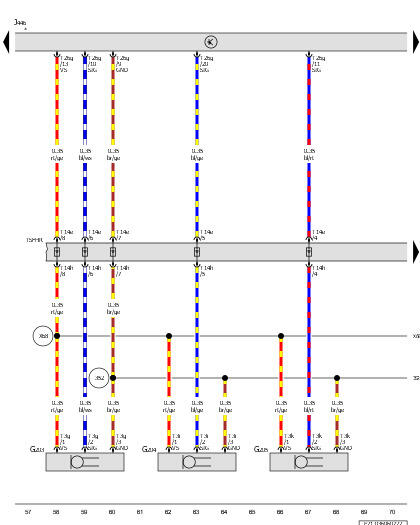

Left Rear Parking Aid Sensor, Left Rear Center Parking Aid Sensor, Right Rear Center Parking Aid Sensor, Parking Aid Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G203

Left Rear Parking Aid Sensor

G204

Left Rear Center Parking Aid Sensor

G205

Right Rear Center Parking Aid Sensor

J446

Parking Aid Control Module

T3g

3-Pin Connector, Black

T3i

3-Pin Connector, Black

T3k

3-Pin Connector, Black

T14e

14-Pin Connector, Black

T14h

14-Pin Connector, Black

T26g

26-Pin Connector, Black

TSFHR

Coupling Point on Right Rear Bumper

352

Parking Aid Ground Connection (in Rear Bumper Wiring Harness)

X68

Parking Aid Connection (in Rear Bumper Wiring Harness)

*

Refer to the Applicable Multimedia System Wiring Diagram
