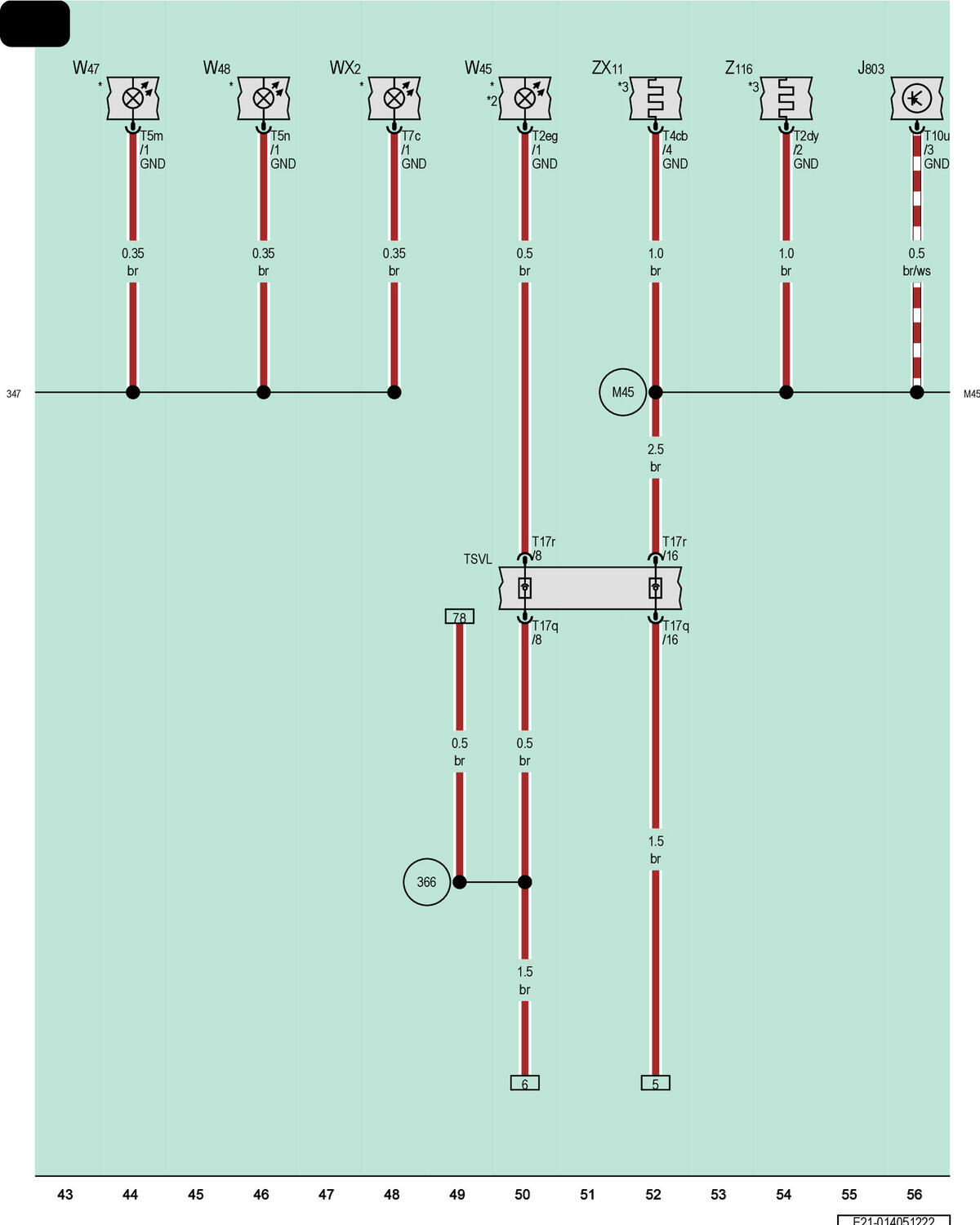

Left Front Massaging Seat Control Module, Rear Interior Lamp, Left Rear FOOTWELL Lamp, Left Rear Interior Lamp, Right Rear Interior Lamp, Left Front Seat Heater, Left Front Seat Heated Backrest
J803
Left Front Massaging Seat Control Module
T2dy
2-Pin Connector, Red
T2eg
2-Pin Connector, Black
T4cb
4-Pin Connector, Black
T5m
5-Pin Connector, Black
T5n
5-Pin Connector, Black
T7c
7-Pin Connector, Black
T10u
10-Pin Connector, Black
T17q
17-Pin Connector, Red
T17r
17-Pin Connector, Red
TSVL
Left Front Seat Coupling Station
WX2
Rear Interior Lamp
W45
Left Rear Footwell Lamp
W47
Left Rear Interior Lamp
W48
Right Rear Interior Lamp
ZX11
Left Front Seat Heater
Z116
Left Front Seat Heated Backrest
347
Ground Connection (in Roof Wiring Harness)
366
Ground Connection 1 (in Main Wiring Harness)
M45
Connection 5 (in Driver Seat Wiring Harness)
*
Refer to Applicable Wiring Diagram for Interior Lamps
*2
Not for USA
*3
Refer to the Applicable Heated Seats Wiring Diagram
