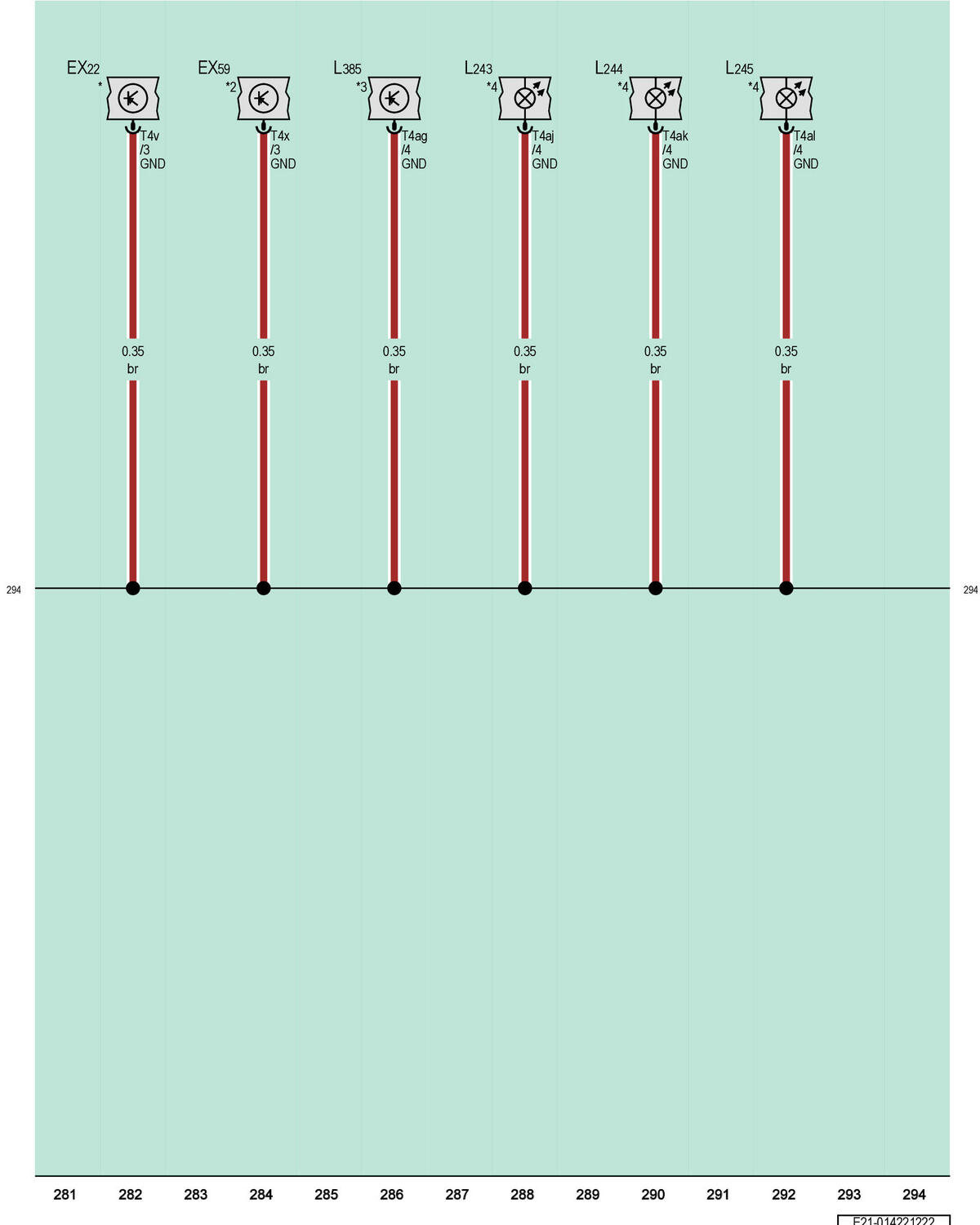

Center Instrument Panel Switch Module, Illumination Control Head, Instrument Panel Contour Illumination Lamp 1, Instrument Panel Contour Illumination Lamp 2, Instrument Panel Contour Illumination Lamp 3, Dynamic Information Lighting Strip 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX22

Center Instrument Panel Switch Module

EX59

Illumination Control Head

L243

Instrument Panel Contour Illumination Lamp 1

L244

Instrument Panel Contour Illumination Lamp 2

L245

Instrument Panel Contour Illumination Lamp 3

L385

Dynamic Information Lighting Strip 3

T4ag

4-Pin Connector, Black

T4aj

4-Pin Connector, Black

T4ak

4-Pin Connector, Black

T4al

4-Pin Connector, Black

T4v

4-Pin Connector, Red

T4x

4-Pin Connector, Red

294

Ground Connection 9 (in Interior Wiring Harness)

*

Refer to the Applicable Multimedia System Wiring Diagram

*2

Refer to Applicable Light Switch Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Instrument Cluster

*4

Refer to Applicable Ambient Lighting Wiring Diagram
