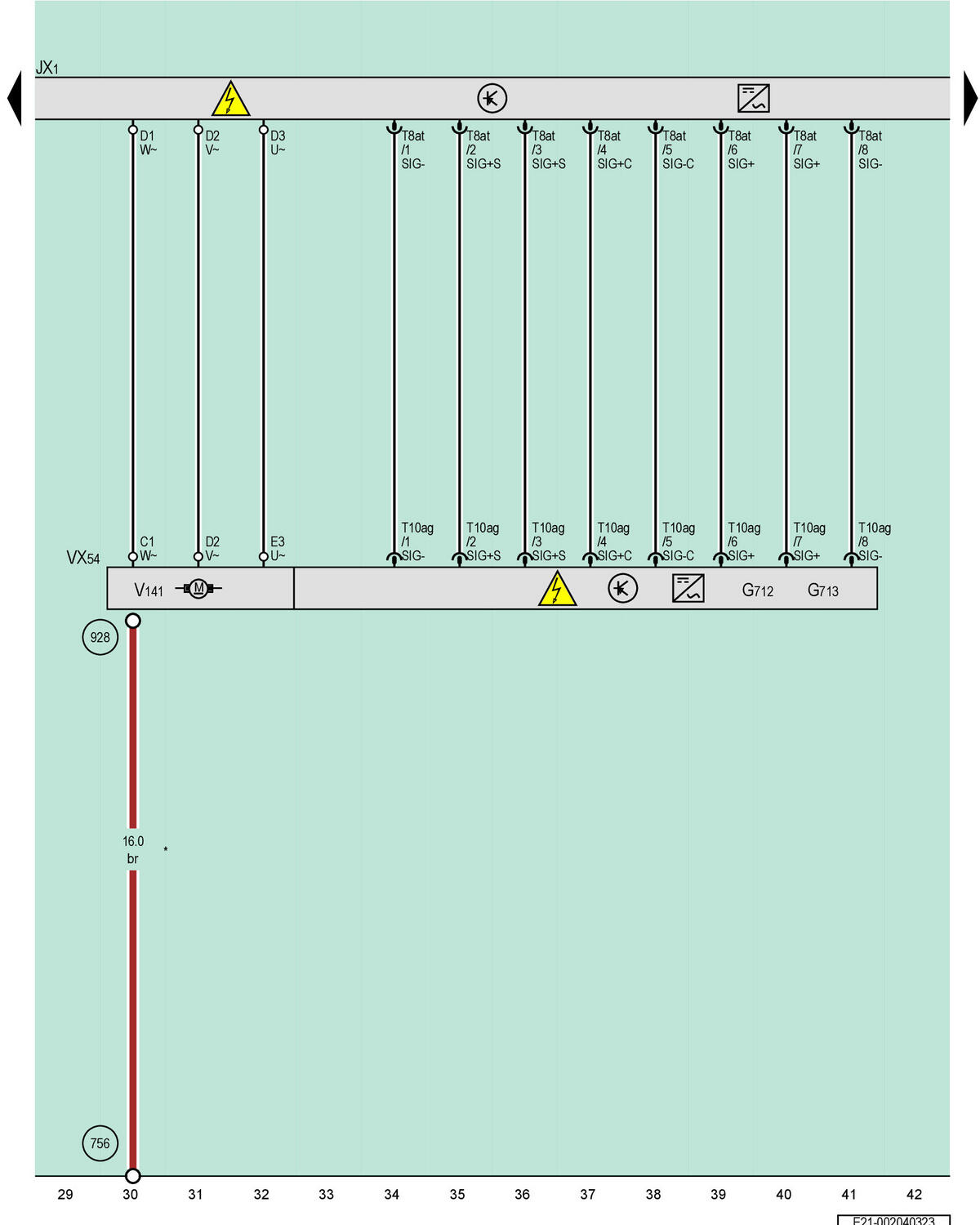

Electric Drive Power And Control Electronics, Three-Phase Current Drive

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G712

Drive Motor Temperature Sensor

G713

Drive Motor Rotor Position Sensor 1

JX1

Electric Drive Power and Control Electronics

T8at

8-Pin Connector, Black

T10ag

10-Pin Connector, Black

VX54

Three-Phase Current Drive

V141

Electric Drive Motor

756

Ground Connection 1 on Right Rear Chassis Side Member

928

Ground Connection 1 on Electric Drive Motor 2

*

Potential Equalization Cable for Three-Phase Current Drive (P71)
