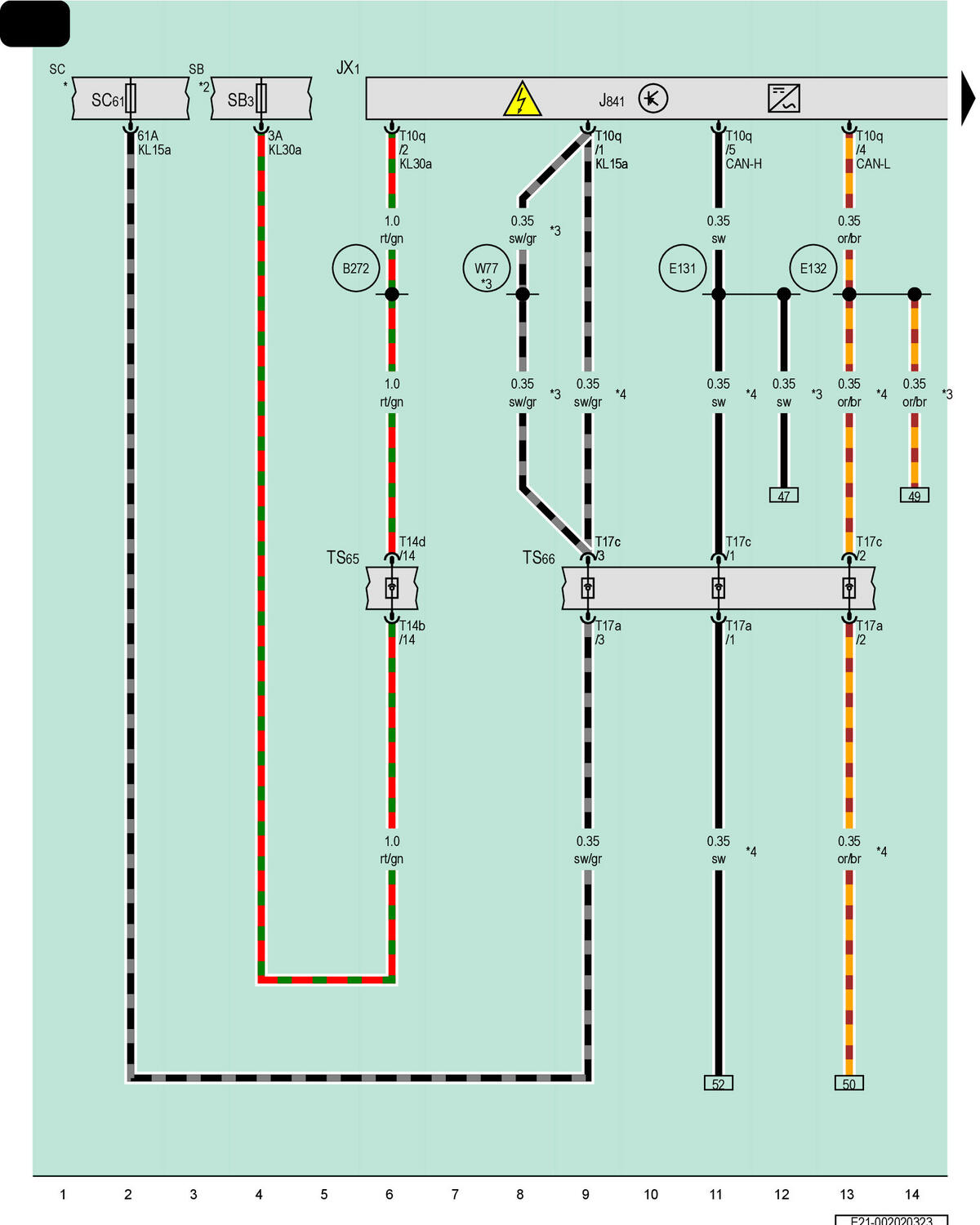

Electric Drive Power And Control Electronics, Fuse Panel B, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

JX1

Electric Drive Power and Control Electronics

J841

Electric Drive Control Module

SB

Fuse Panel B

SB3

Fuse 3 (On Fuse Panel B)

SC

Fuse Panel C

SC61

Fuse 61 (On Fuse Panel C)

T10q

10-Pin Connector, Black

T14b

14-Pin Connector, Black

T14d

14-Pin Connector, Black

T17a

17-Pin Connector, Black

T17c

17-Pin Connector, Black

TS65

Front Suspension Coupling Point

TS66

Rear Suspension Coupling Point

B272

Positive Connection (30) (in Main Wiring Harness)

E131

CAN Bus Drive High Connection 5 (in Engine Wiring Harness)

E132

CAN Bus Drive Low Connection 5 (in Engine Wiring Harness)

W77

Positive Connection 1 (15) (in All Wheel Drive Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*3

For AWD Vehicles

*4

For Rear Wheel Drive Vehicles
