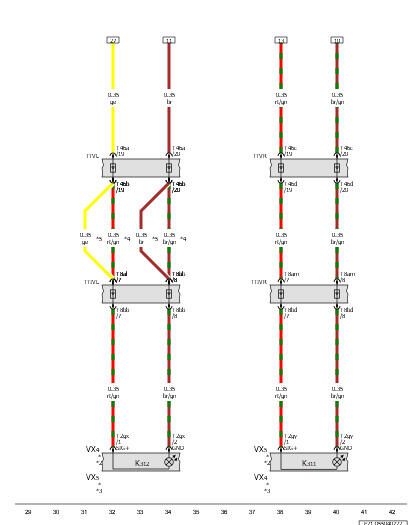

Driver Exterior Rearview Mirror, Front Passenger Exterior Rearview Mirror

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

K311

Lane Change Assistance Warning Lamp in Right Exterior Rearview Mirror

K312

Lane Change Assistance Warning Lamp in Left Exterior Rearview Mirror

T2gx

2-Pin Connector, Black

T2gy

2-Pin Connector, Black

T8al

8-Pin Connector, Black

T8am

8-Pin Connector, Black

T8bb

8-Pin Connector, Black

T8bd

8-Pin Connector, Black

T46a

46-Pin Connector, Black

T46b

46-Pin Connector, Black

T46c

46-Pin Connector, Black

T46d

46-Pin Connector, Black

TTIVL

Coupling Point in Left Front Door

TTIVR

Coupling Point in Right Front Door

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point

VX4

Driver Exterior Rearview Mirror

VX5

Front Passenger Exterior Rearview Mirror

*

Pre-Wired Component

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

Through November 2020

*5

From November 2020
