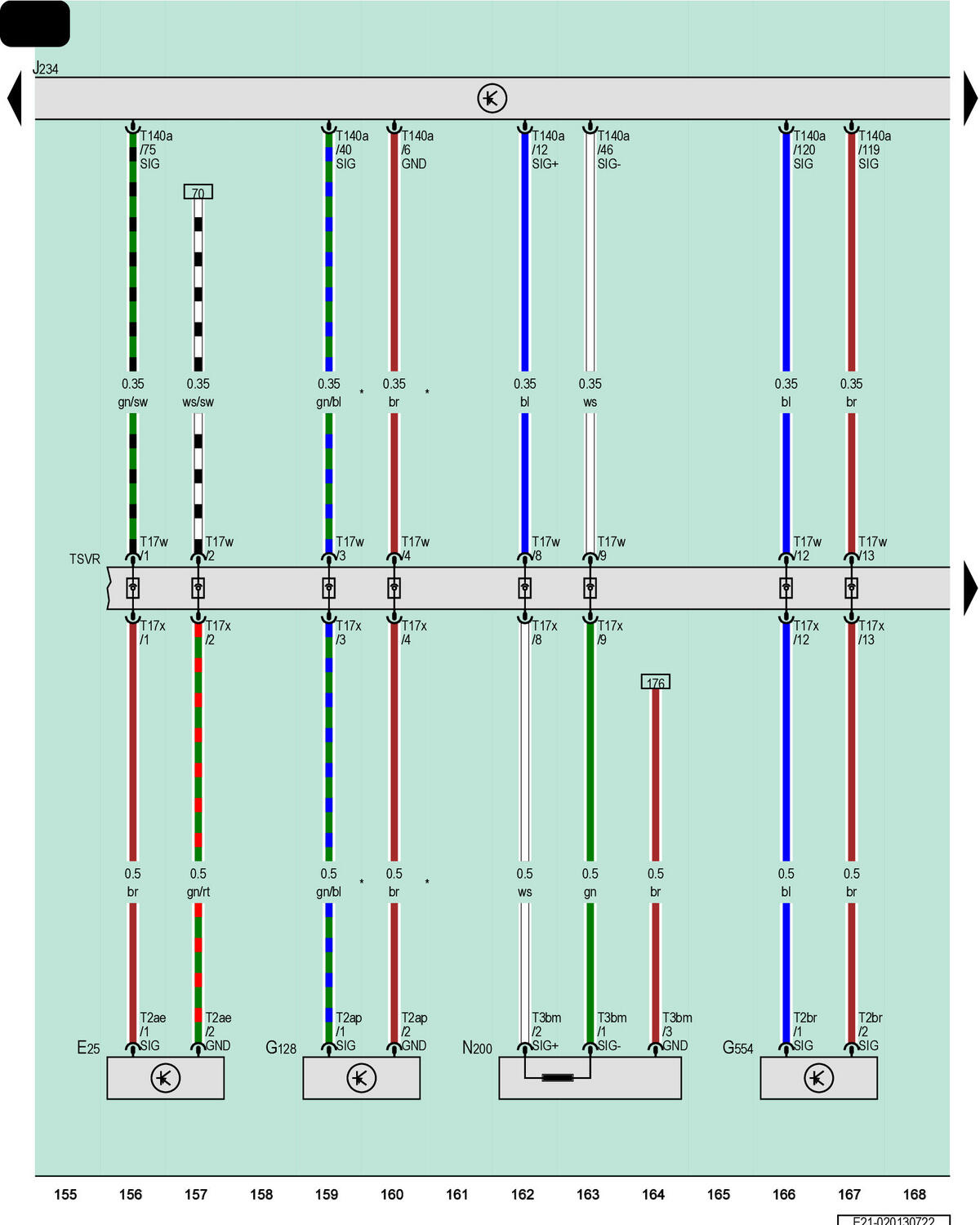

Front Passenger Seat Belt Switch, Passenger Seat Occupant Detection Sensor, Front Passenger Seat Position Sensor, Airbag Control Module, Front Passenger Thorax Airbag Igniter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E25

Front Passenger Seat Belt Switch

G128

Passenger Seat Occupant Detection Sensor

G554

Front Passenger Seat Position Sensor

J234

Airbag Control Module

N200

Front Passenger Thorax Airbag Igniter

T2ae

2-Pin Connector, Black

T2ap

2-Pin Connector, Blue

T2br

2-Pin Connector, Black

T3bm

3-Pin Connector, Yellow

T17w

17-Pin Connector, Yellow

T17x

17-Pin Connector, Yellow

T140a

140-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

*

Not for USA
