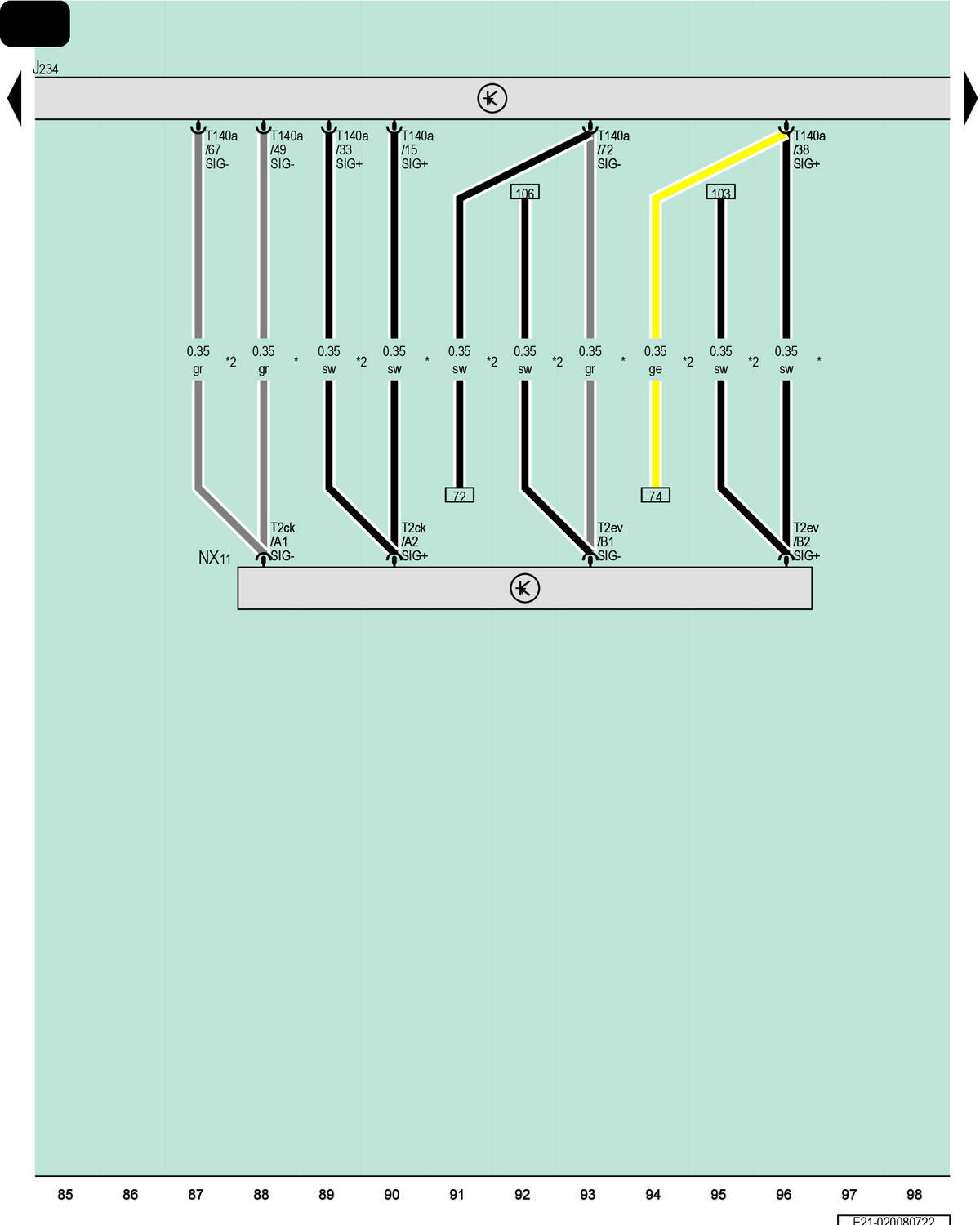

Airbag Control Module, Right Front Seat Belt

GWWE21-020080722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

NX11

Right Front Seat Belt

T2ck

2-Pin Connector, Yellow

T2ev

2-Pin Connector, Yellow

T140a

140-Pin Connector, Yellow

*

Not for USA

*2

For USA Only
