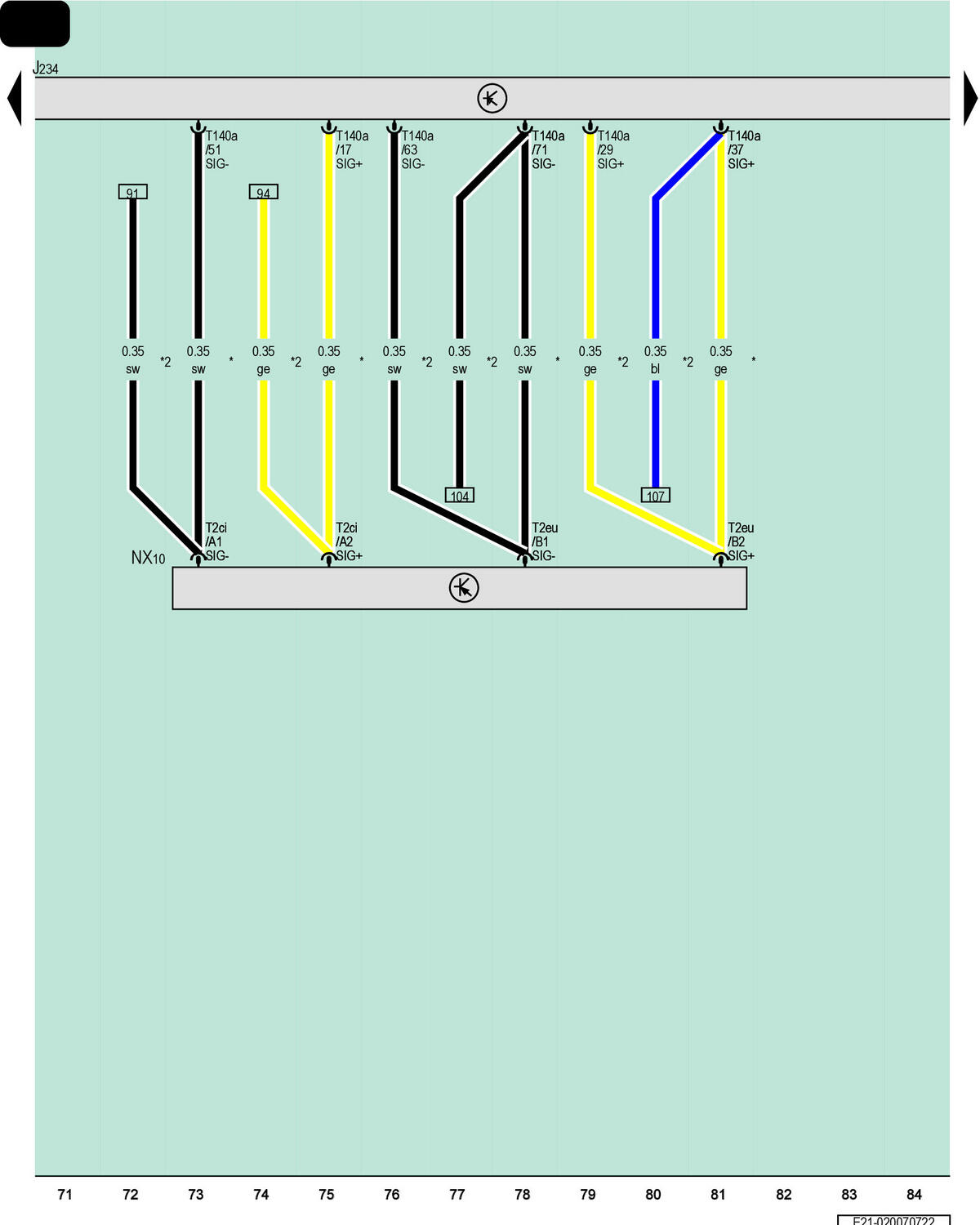

Airbag Control Module, Left Front Seat Belt

GWWE21-020070722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

NX10

Left Front Seat Belt

T2ci

2-Pin Connector, Yellow

T2eu

2-Pin Connector, Yellow

T140a

140-Pin Connector, Yellow

*

Not for USA

*2

For USA Only
