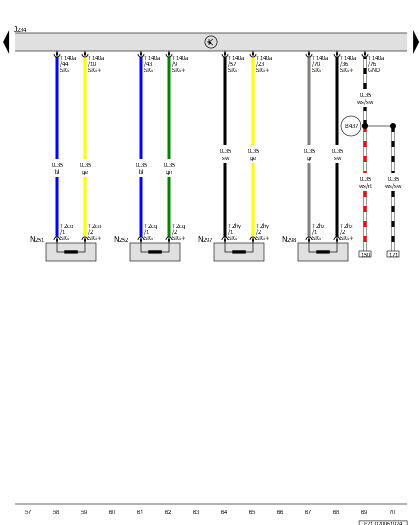

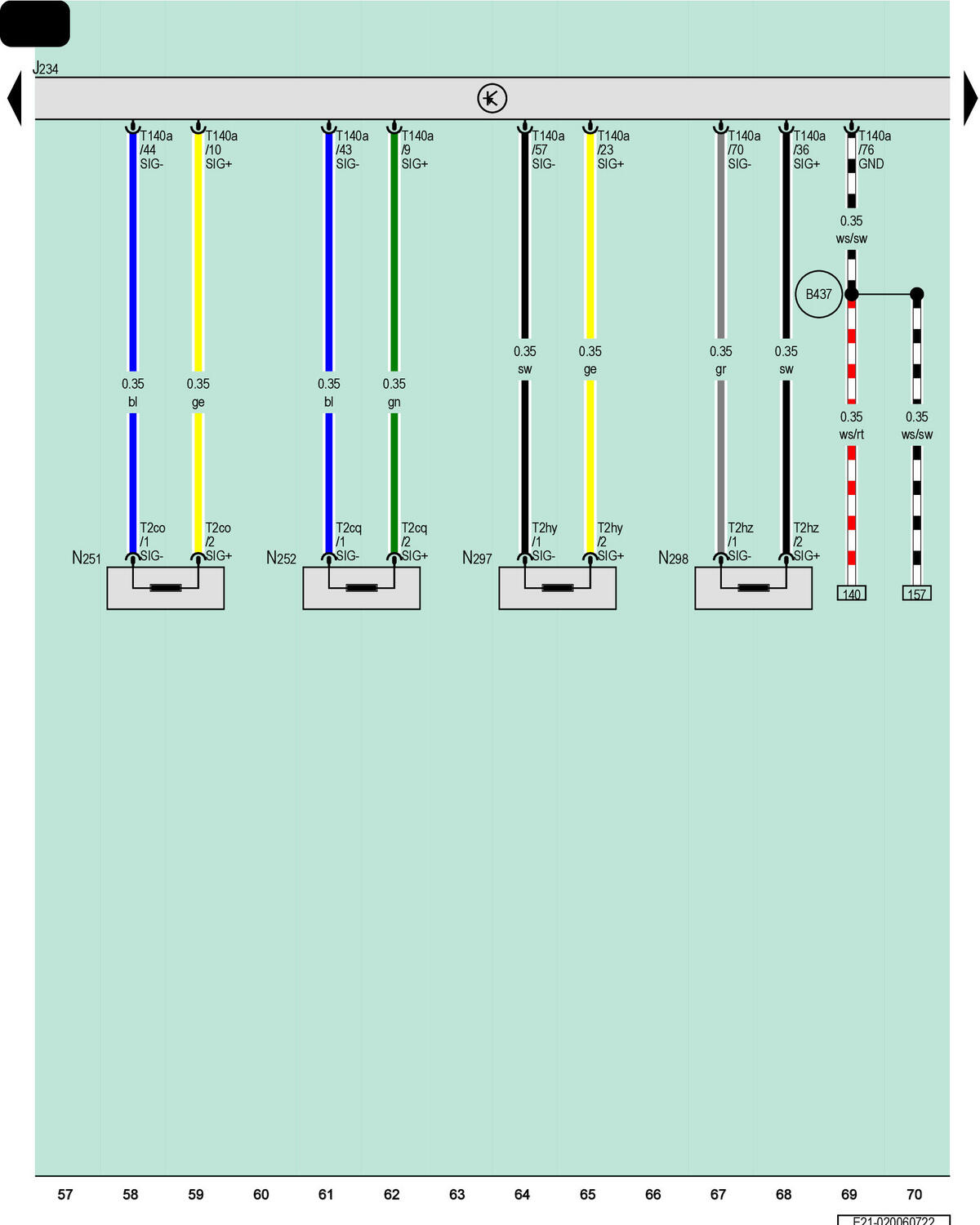

Airbag Control Module, Driver Head Curtain Airbag Igniter, Front Passenger Head Curtain Airbag Igniter, Driver Seat Belt TENSIONER Igniter 2, Front Passenger Seat Belt TENSIONER Igniter 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J234

Airbag Control Module

N251

Driver Head Curtain Airbag Igniter

N252

Front Passenger Head Curtain Airbag Igniter

N297

Driver Seat Belt Tensioner Igniter 2

N298

Front Passenger Seat Belt Tensioner Igniter 2

T2co

2-Pin Connector, Yellow

T2cq

2-Pin Connector, Yellow

T2hy

2-Pin Connector, Yellow

T2hz

2-Pin Connector, Yellow

T140a

140-Pin Connector, Yellow

B437

Ground Connection 1 (in Main Wiring Harness)
