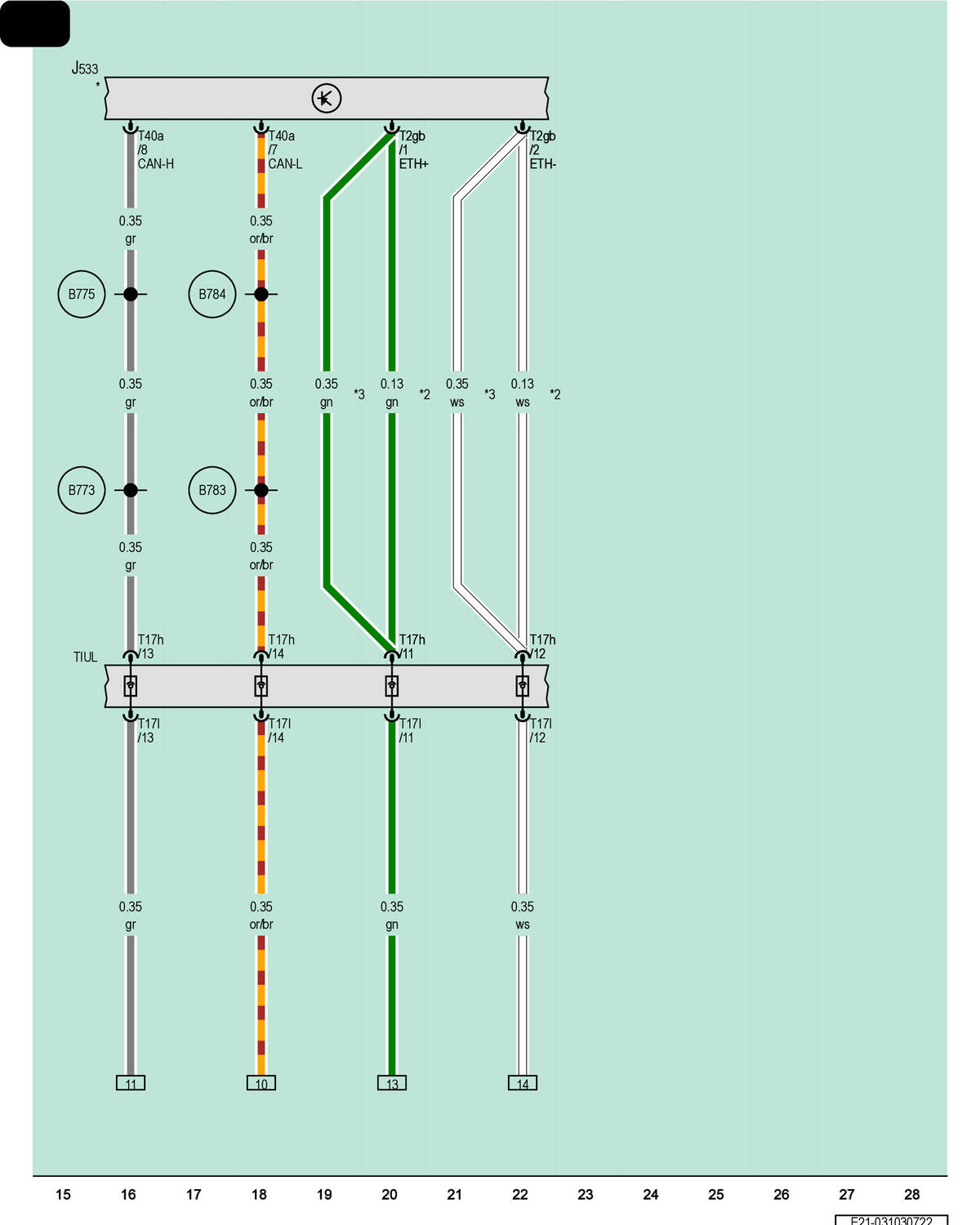

Data Bus On Board Diagnostic Interface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

T2gb

2-Pin Connector, White

T17h

17-Pin Connector, Blue

T17l

17-Pin Connector, Blue

T40a

40-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

B773

Suspension Sensor CAN Bus High Connection 2 (in Main Wiring Harness)

B775

Suspension Sensor CAN Bus High Connection 4 (in Main Wiring Harness)

B783

Suspension Sensor CAN Bus Low Connection 2 (in Main Wiring Harness)

B784

Suspension Sensor CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to the Applicable Suspension CAN Bus Network Data Bus Wiring Diagram

*2

Through June 2022

*3

From June 2022
