Burglary Protection Control Module 4, Burglary Protection Control Module 5

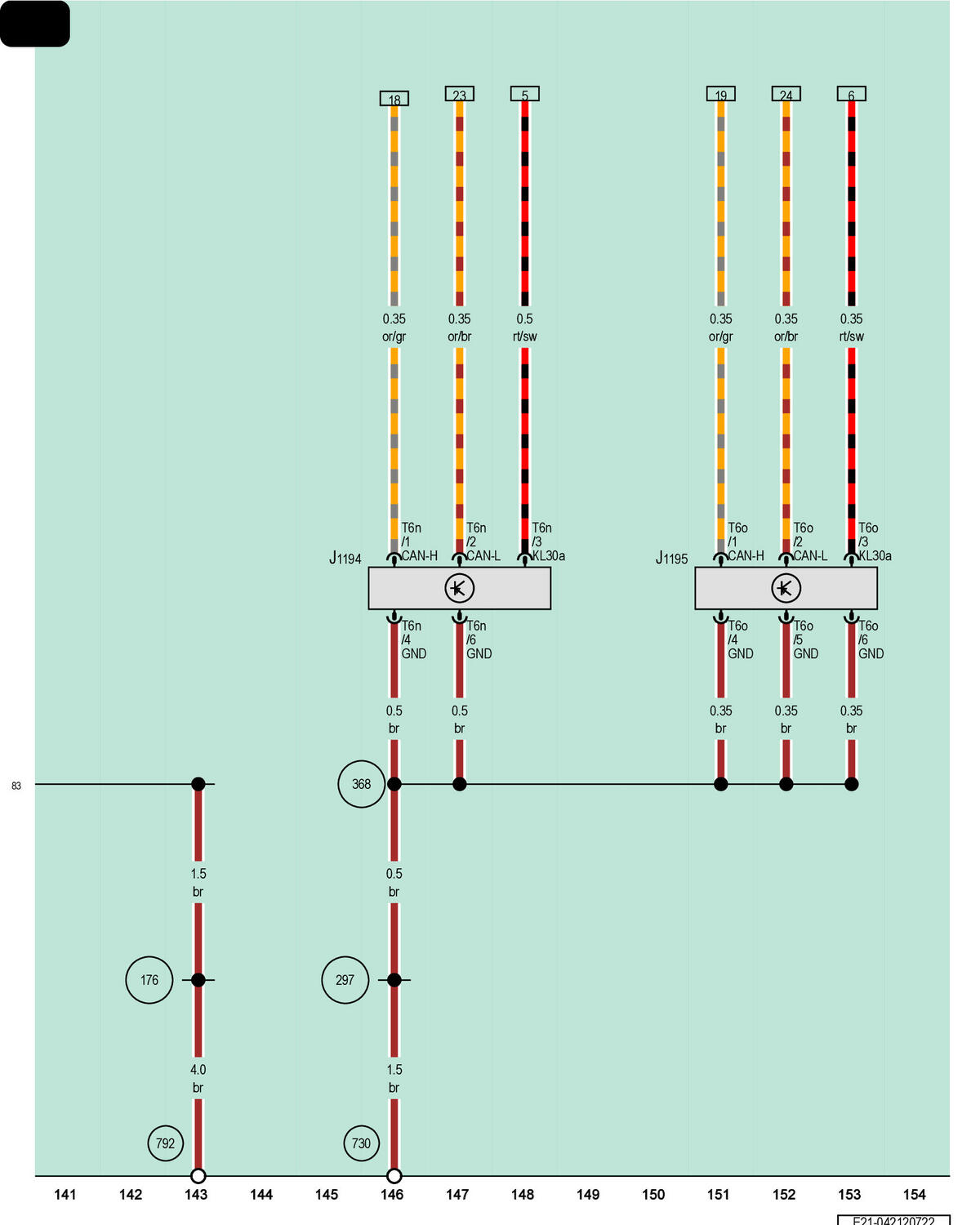

GWWE21-042120722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J1194

Burglary Protection Control Module 4

J1195

Burglary Protection Control Module 5

T6n

6-Pin Connector, Black

T6o

6-Pin Connector, Black

83

Ground Connection 1 (in Right Front Wiring Harness)

176

Ground Connection (in Right Headlamp Wiring Harness)

297

Ground Connection 12 (in Interior Wiring Harness)

368

Ground Connection 3 (in Main Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

792

Ground Connection in Right Front Wheel Housing
