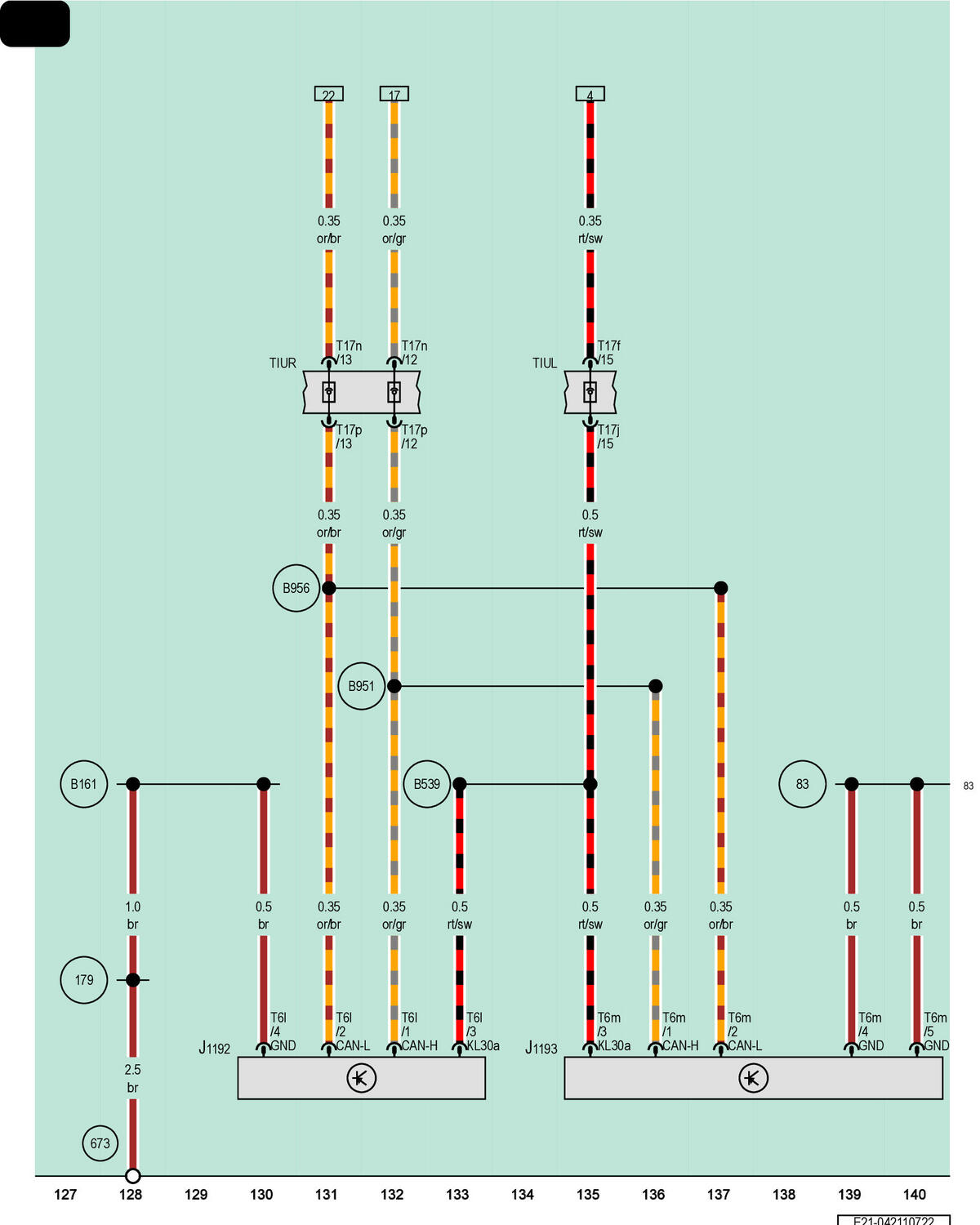

Burglary Protection Control Module 2, Burglary Protection Control Module 3
J1192
Burglary Protection Control Module 2
J1193
Burglary Protection Control Module 3
T6l
6-Pin Connector, Black
T6m
6-Pin Connector, Black
T17f
17-Pin Connector, Brown
T17j
17-Pin Connector, Brown
T17n
17-Pin Connector, Brown
T17p
17-Pin Connector, Brown
TIUL
Coupling Point in Interior, Bottom Left
TIUR
Coupling Point in Interior, Bottom Right
83
Ground Connection 1 (in Right Front Wiring Harness)
179
Ground Connection (in Left Headlamp Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
B161
Anti-Theft Alarm System Connection (in Interior Wiring Harness)
B539
Connection 30 (in Main Wiring Harness)
B951
Connection 2 (CAN Bus Connectivity High) in Main Wiring Harness
B956
Connection 2 (CAN Bus Connectivity Low) in Main Wiring Harness
