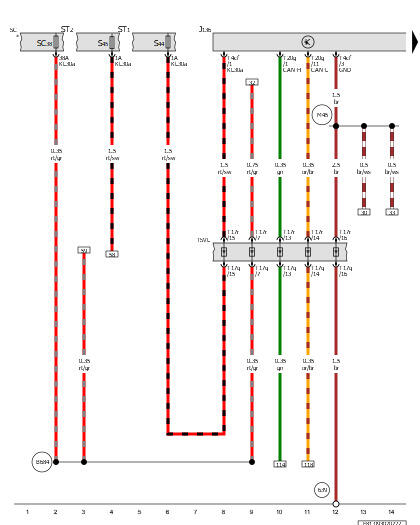

Memory Seat/Steering Column Adjustment Control Module, Fuse Panel C, Fuse Panel 1, Fuse Panel 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J136

Memory Seat/Steering Column Adjustment Control Module

Fuse Panel C

ST1

Fuse Panel 1

ST2

Fuse Panel 2

SC38

Fuse 38 (On Fuse Panel C)

S44

Driver Power Seat Adjustment Circuit Breaker 1

S45

Driver Power Seat Adjustment Circuit Breaker 2

T4cf

4-Pin Connector, Black

T17q

17-Pin Connector, Red

T17r

17-Pin Connector, Red

T20g

20-Pin Connector, Black

TSVL

Left Front Seat Coupling Station

639

Ground Connection on Left A-Pillar

B684

Positive Connection 24 (30a) (in Main Wiring Harness)

M45

Connection 5 (in Driver Seat Wiring Harness)

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
