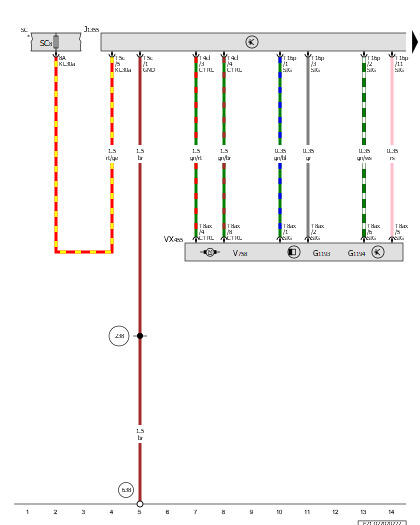

Roof System Control Module, Fuse Panel C, Sun Shade Drive Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G1193

Sun Shade Motor Position Sensor 1

G1194

Sun Shade Motor Position Sensor 2

J1355

Roof System Control Module

Fuse Panel C

SC8

Fuse 8 (On Fuse Panel C)

T4cl

4-Pin Connector, Black

T5c

5-Pin Connector, Black

T8ax

8-Pin Connector, Black

T16p

16-Pin Connector, Black

VX455

Sun Shade Drive Unit

V758

Sun Shade Motor

238

Ground Connection 1 (in Interior Wiring Harness)

638

Ground Connection on Right A-Pillar

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
