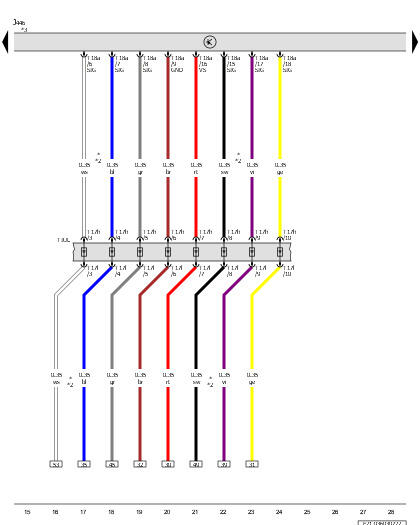

Parking Aid Control Module

GWWE21-036030722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J446

Parking Aid Control Module

T17h

17-Pin Connector, Blue

T17l

17-Pin Connector, Blue

T18a

18-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

*

For Vehicles with Parallel Parking Assistance

*2

From November 2021

*3

Refer to the Applicable Multimedia System Wiring Diagram
