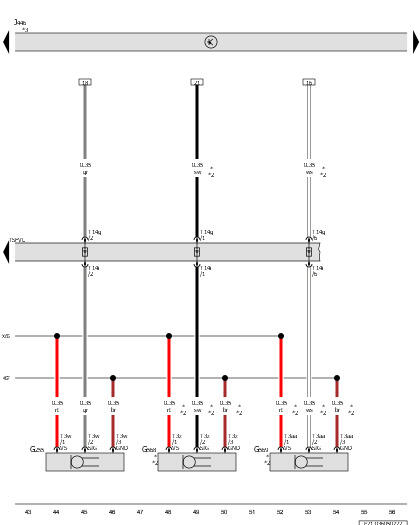

Left Front Parking Aid Sensor, Parking Aid Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G255

Left Front Parking Aid Sensor

G568

Left Front Parallel Parking Assistance Sensor

G569

Right Front Parallel Parking Assistance Sensor

J446

Parking Aid Control Module

T3aa

3-Pin Connector, Gray

T3w

3-Pin Connector, Black

T3z

3-Pin Connector, Gray

T14g

14-Pin Connector, Brown

T14i

14-Pin Connector, Brown

TSFVL

Coupling Point on Left Front Bumper

457

Ground Connection 2 (in Front Bumper Wiring Harness)

X65

Parking Aid Connection (in Front Bumper Wiring Harness)

*

For Vehicles with Parallel Parking Assistance

*2

From November 2021

*3

Refer to the Applicable Multimedia System Wiring Diagram
