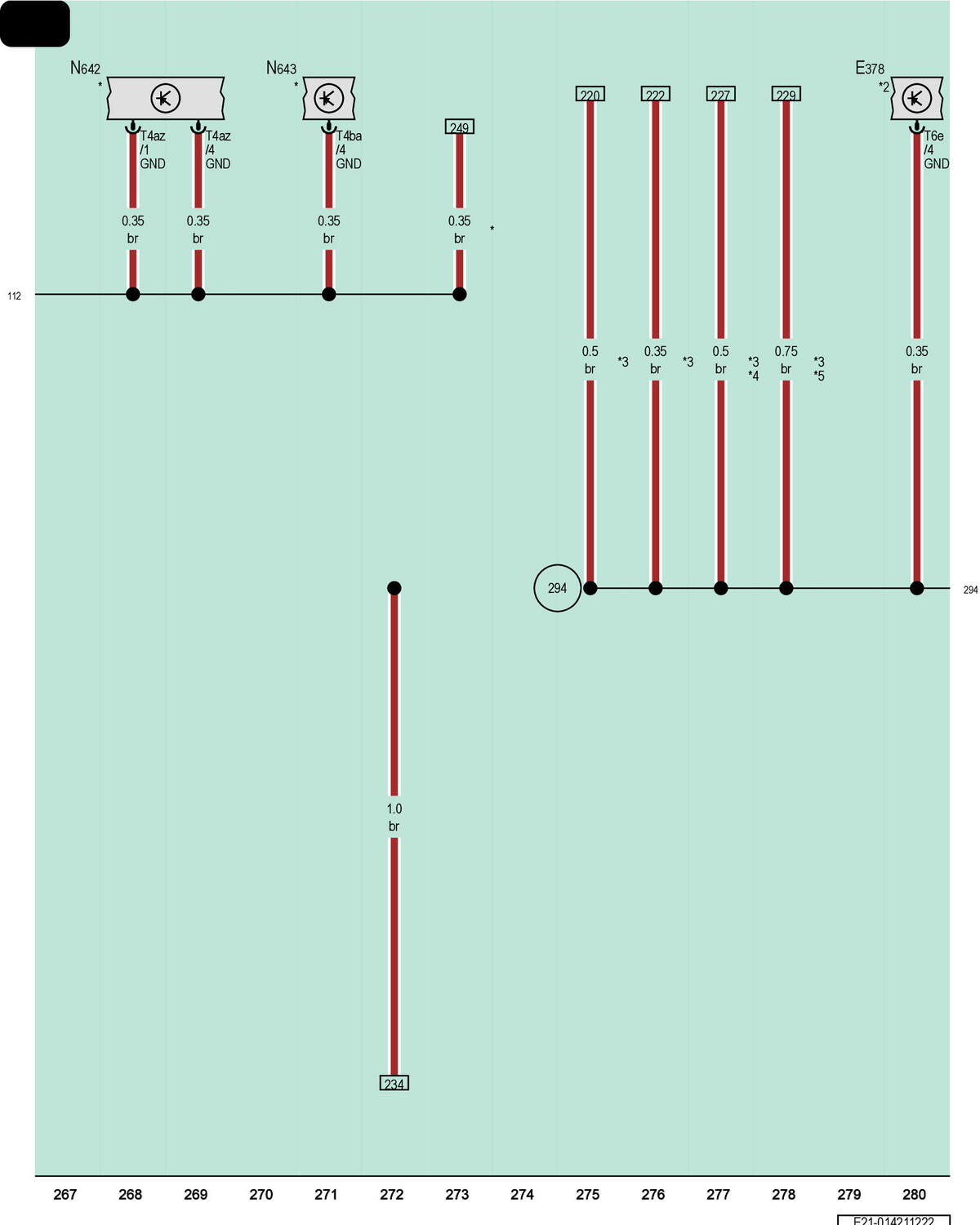

Start System Button, Refrigerant Shut-Off Valve 4, Refrigerant Shut-Off Valve 5

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E378

Start System Button

N642

Refrigerant Shut-Off Valve 4

N643

Refrigerant Shut-Off Valve 5

T4az

4-Pin Connector, Black

T4ba

4-Pin Connector, Black

T6e

6-Pin Connector, Black

112

Ground Connection 2 (in A/C Wiring Harness)

294

Ground Connection 9 (in Interior Wiring Harness)

*

Refer to Applicable Thermo Management Wiring Diagram

*2

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*3

For LHD Vehicles

*4

Through June 2022

*5

From June 2022
