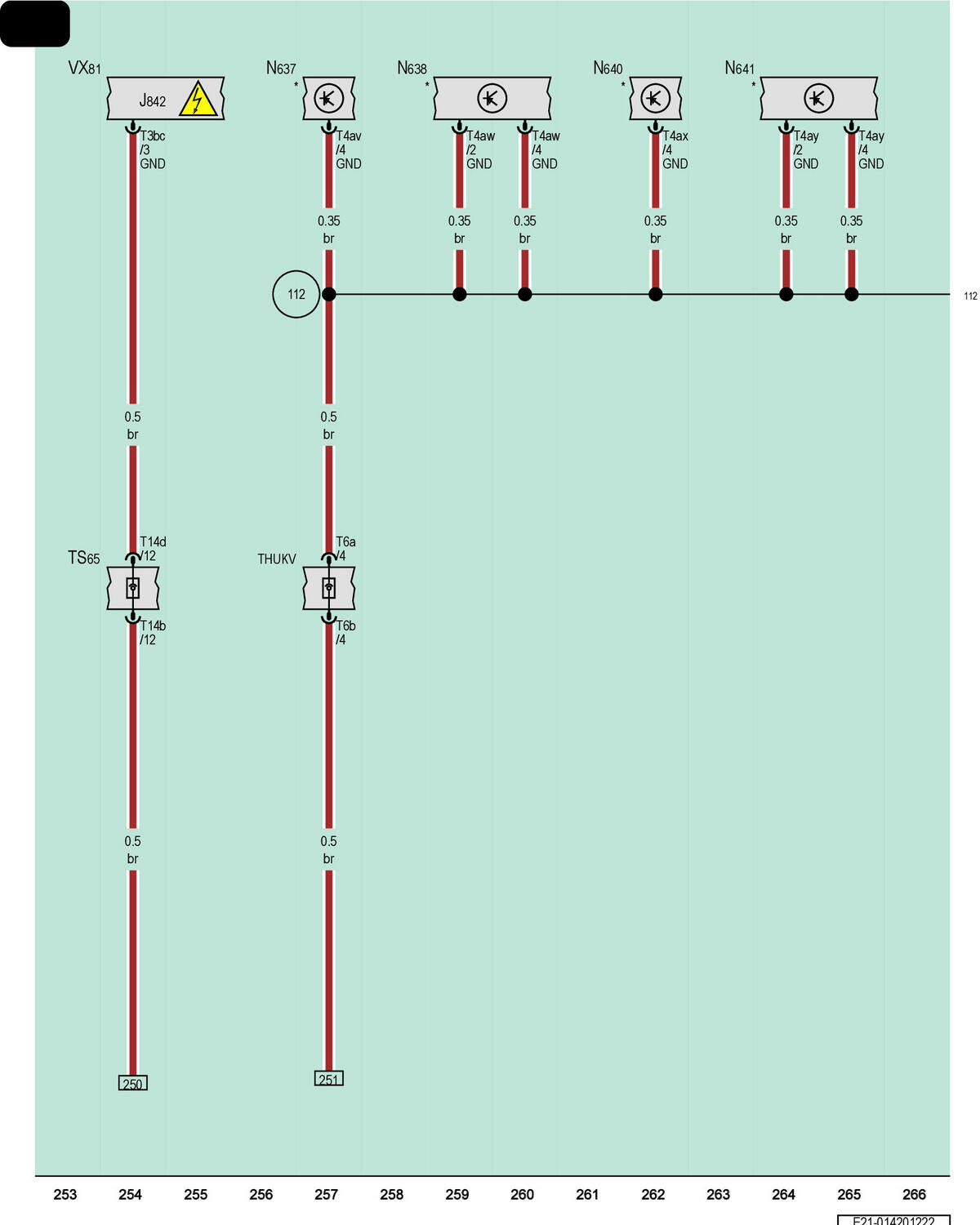

Refrigerant Expansion Valve 2, Refrigerant Expansion Valve 3, Refrigerant Shut-Off Valve 2, Refrigerant Shut-Off Valve 3, A/C Compressor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J842

A/C Compressor Control Module

N637

Refrigerant Expansion Valve 2

N638

Refrigerant Expansion Valve 3

N640

Refrigerant Shut-Off Valve 2

N641

Refrigerant Shut-Off Valve 3

T3bc

3-Pin Connector, Black

T4av

4-Pin Connector, Black

T4aw

4-Pin Connector, Black

T4ax

4-Pin Connector, Black

T4ay

4-Pin Connector, Black

T6a

6-Pin Connector, Black

T6b

6-Pin Connector, Black

T14b

14-Pin Connector, Black

T14d

14-Pin Connector, Black

THUKV

Front Heating and Air Conditioning Coupling Point

TS65

Front Suspension Coupling Point

VX81

A/C Compressor

112

Ground Connection 2 (in A/C Wiring Harness)

*

Refer to Applicable Thermo Management Wiring Diagram
