Rear Seat Backrest, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

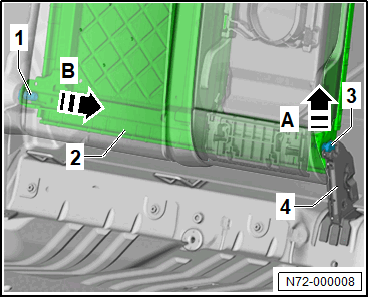

-- Slide the rear seat backrest -2- opposite the direction of -arrow B- out of the outer pivot pin -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the inner mounting pin -3- in the center bearing -4-.
