Overview - Center Armrest

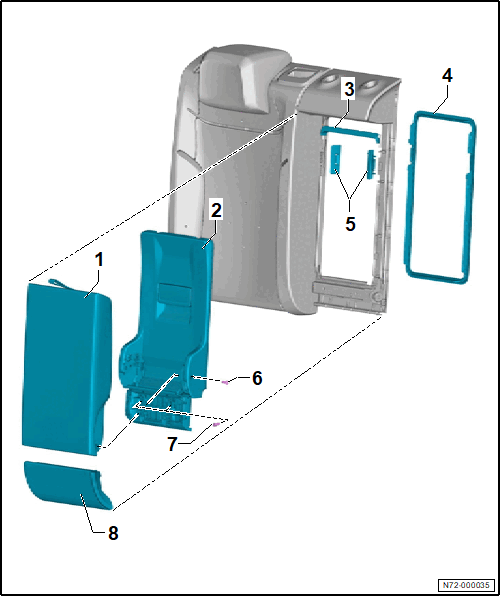

Fig 1: Exploded View Of Center Armrest

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Armrest
- Refer to Center Armrest, Removing and Installing .
Pass-Through Door
- Refer to Pass-Through Door, Removing and Installing .
Stop Strip
- Refer to Pass-Through Cover Frame, Removing and Installing .
Pass-Through Cover Frame
- Refer to Pass-Through Cover Frame, Removing and Installing .
Door Locking Mechanism Trim
- Refer to Pass-Through Cover Frame, Removing and Installing .
- Quantity: 2
Bolt
- 12 Nm
- Replace after removing
- Self-tapping
- Quantity: 2
Bolt
- 8 Nm
- Quantity: 2
Center Cushion
- Refer to Center Cushion, Removing and Installing, Backrest with Pass-Through .
