Overview - Bench Seat/Single Seats

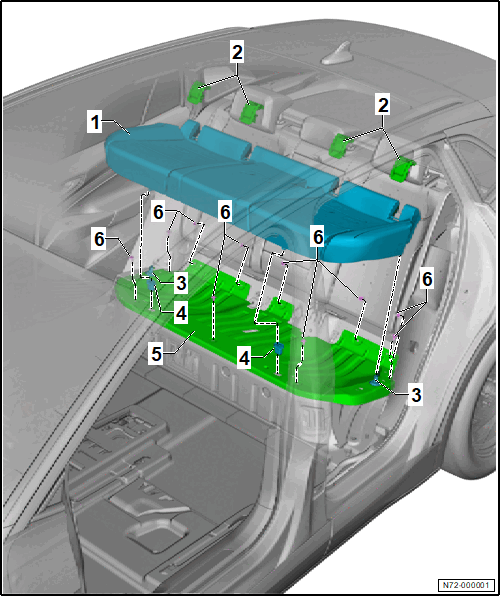

Fig 1: Exploded View Of Bench Seat/Single Seats

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bench Seat
   • Depending on equipment/version
   • Refer to Bench Seat/Single Seat, Removing and Installing  .
2. Bench Seat Child Seat Anchor Guide
   • Refer to Rear Bench Seat Cover and Cushion, Removing and Installing .
   • Quantity: 4
3. Hook
   • Quantity: 2
4. Grommet
   • Replace after removing
   • Quantity: 2
5. Seat Pan
   • Refer to Seat Pan, Removing and Installing  .
6. Bolt
   • 12 Nm
   • Refer to Fig 2
   • Quantity: 10

Tightening Specifications and Sequence

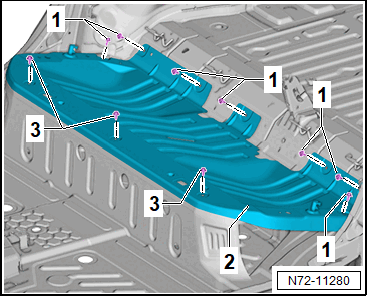

Fig 2: Bench Seat/Single Seats Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
