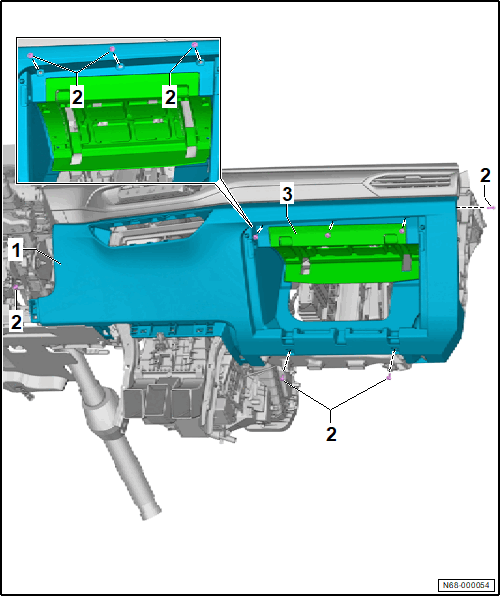

Overview - Instrument Panel Cover, Front Passenger Side

The overview is described as an example for a LHD vehicle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Passenger Side Instrument Panel Cover
   • Refer to Front Passenger Side Instrument Panel Cover, Removing and Installing  .
2. Bolt
   • 1.5 Nm
   • Quantity: 7
3. Glove Compartment Lid
   • Refer to Glove Compartment Lid, Removing and Installing  .
