Overview - Plenum Chamber Cover

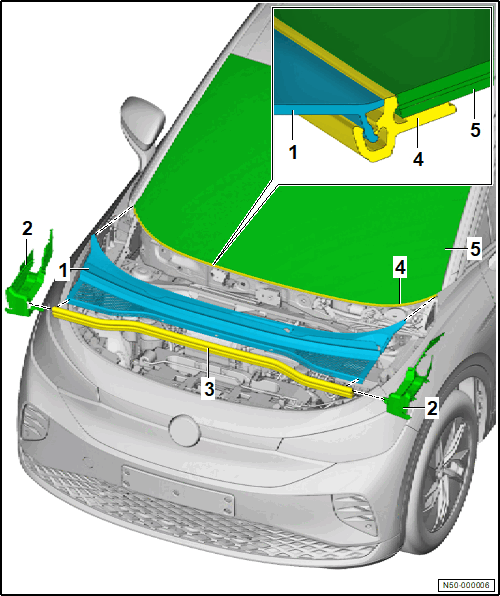

Fig 1: Plenum Chamber Cover
GWWN50-000006Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Plenum Chamber Cover
  2. Side Plenum Chamber Cover
  3. Seal
  4. Retainer
  5. Windshield
