Trailer Hitch Release Button E754, Removing And Installing: Removing

-- Loosen the luggage compartment side trim panel in the area of the power pivoting trailer hitch button. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

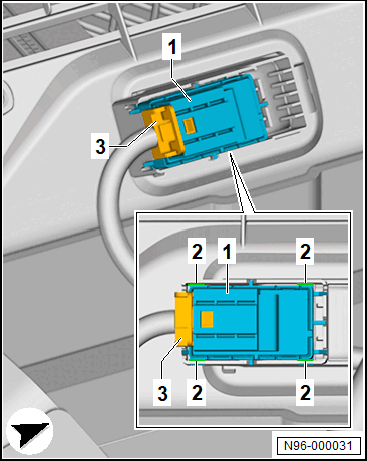

-- Disconnect the connector -3-.

GWWN96-000031Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the hook -2-.

-- Remove the button -1-.
