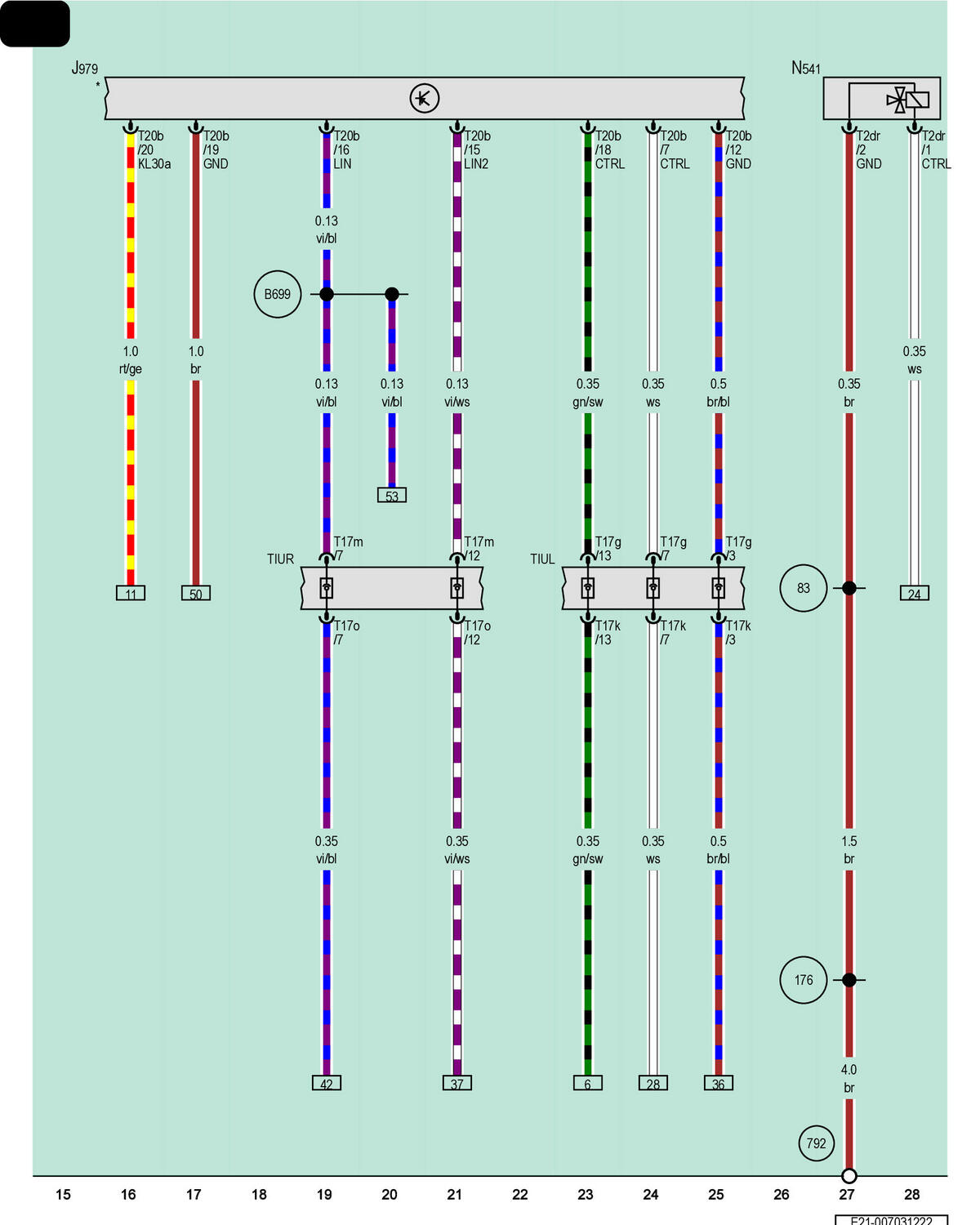

Heating And Air Conditioning Control Module, Heater And A/C Unit Refrigerant Shut-Off Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J979

Heating and Air Conditioning Control Module

N541

Heater and A/C Unit Refrigerant Shut-Off Valve

T2dr

2-Pin Connector, Black

T17g

17-Pin Connector, Red

T17k

17-Pin Connector, Red

T17m

17-Pin Connector, Black

T17o

17-Pin Connector, Black

T20b

20-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

TIUR

Coupling Point in Interior, Bottom Right

83

Ground Connection 1 (in Right Front Wiring Harness)

176

Ground Connection (in Right Headlamp Wiring Harness)

792

Ground Connection in Right Front Wheel Housing

B699

LIN Bus Connection 4 (in Main Wiring Harness)

*

Refer to Applicable A/C System Wiring Diagram
