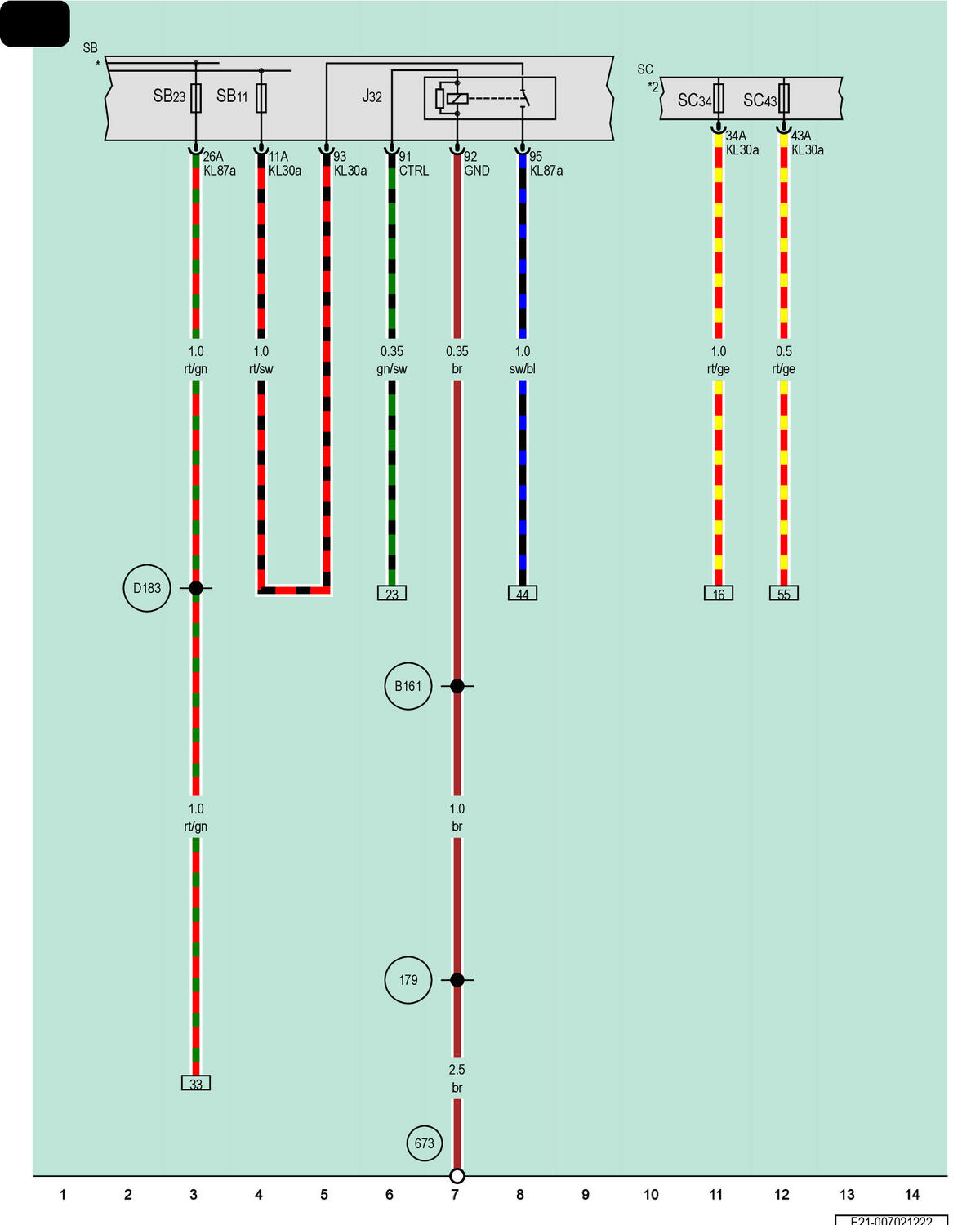

Fuse Panel B, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J32

A/C Relay

SB

Fuse Panel B

SB11

Fuse 11 (On Fuse Panel B)

SB23

Fuse 23 (On Fuse Panel B)

SC

Fuse Panel C

SC34

Fuse 34 (On Fuse Panel C)

SC43

Fuse 43 (On Fuse Panel C)

179

Ground Connection (in Left Headlamp Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member

B161

Anti-Theft Alarm System Connection (in Interior Wiring Harness)

D183

Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
