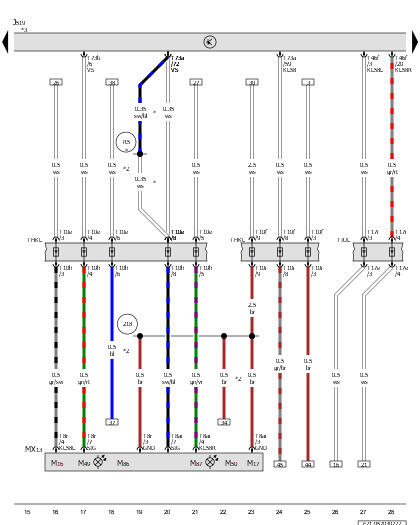

Vehicle Electrical System Control Module, Center Tail Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

MX13

Center Tail Lamp

M16

Left Back-Up Lamp Bulb

M17

Right Back-Up Lamp Bulb

M49

Left Tail Lamp Bulb 2

M50

Right Tail Lamp Bulb 2

M86

Left Brake Lamp Bulb 2

M87

Right Brake Lamp Bulb 2

T8ai

8-Pin Connector, Black

T8r

8-Pin Connector, Black

T10e

10-Pin Connector, Black

T10f

10-Pin Connector, Brown

T10h

10-Pin Connector, Black

T10i

10-Pin Connector, Brown

T17e

17-Pin Connector, Black

T17i

17-Pin Connector, Black

T46f

46-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

THKL

Coupling Point on Rear Lid, Left

TIUL

Coupling Point in Interior, Bottom Left

218

Ground Connection 1 (in Rear Lid Wiring Harness)

R5

Connection 2 (in Interior Lamp Wiring Harness)

*

For Vehicles with Automatic Dimming Interior Rearview Mirror

*2

Coupe

*3

Refer to Applicable Light Switch Wiring Diagram
