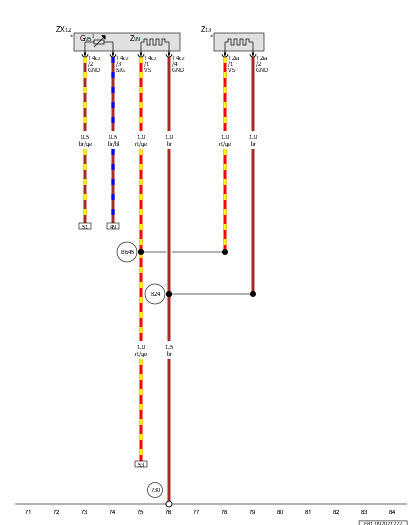

Right Rear Seat Heater, Right Rear Backrest Heating Element

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G95

Right Rear Heated Seat Temperature Sensor

T2ia

2-Pin Connector, Red

T4cz

4-Pin Connector, Black

ZX12

Right Rear Seat Heater

Z13

Right Rear Backrest Heating Element

Z99

Right Rear Seat Heating Element

730

Ground Connection 1 on Right Rear Wheel Housing

824

Ground Connection 17 (in Interior Wiring Harness)

B645

Heated Seat Connection 2 (in Main Wiring Harness)

*

Pre-Wired Component
