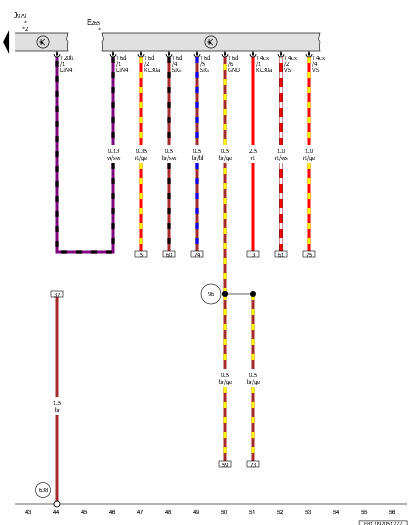

Rear A/C Display Control Head, Heating And Air Conditioning Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E265

Rear A/C Display Control Head

J979

Heating and Air Conditioning Control Module

T4cx

4-Pin Connector, Black

T6d

6-Pin Connector, Black

T20b

20-Pin Connector, Black

96

Ground Connection 1 (in Heated Seats Wiring Harness)

638

Ground Connection on Right A-Pillar

*

Refer to Applicable A/C System Wiring Diagram

*2

Refer to the Applicable Multimedia System Wiring Diagram
