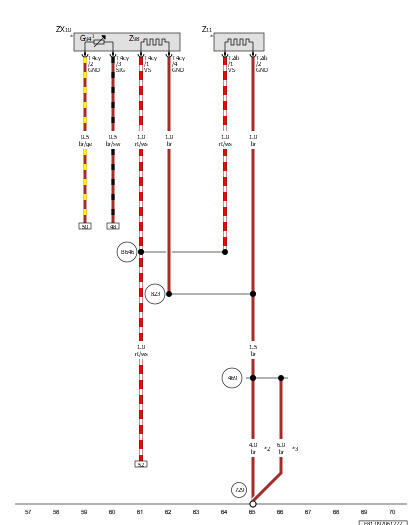

Left Rear Seat Heater, Left Rear Backrest Heating Element

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G94

Left Rear Heated Seat Temperature Sensor

T2ib

2-Pin Connector, Red

T4cy

4-Pin Connector, Black

ZX10

Left Rear Seat Heater

Z11

Left Rear Backrest Heating Element

Z98

Left Rear Seat Heating Element

469

Ground Connection 20 (in Interior Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

823

Ground Connection 16 (in Interior Wiring Harness)

B646

Heated Seat Connection 3 (in Main Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles Without Sensor-Controlled Power Rear Lid Opening

*3

For Vehicles with Sensor-Controlled Power Rear Lid Opening
