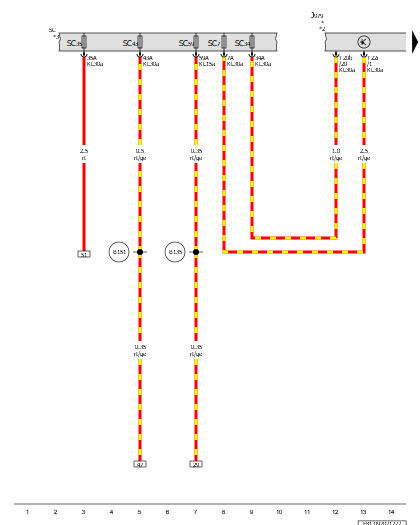

Heating And Air Conditioning Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J979

Heating and Air Conditioning Control Module

SC

Fuse Panel C

SC7

Fuse 7 (On Fuse Panel C)

SC34

Fuse 34 (On Fuse Panel C)

SC35

Fuse 35 (On Fuse Panel C)

SC43

Fuse 43 (On Fuse Panel C)

SC59

Fuse 59 (On Fuse Panel C)

T20b

20-Pin Connector, Black

T22i

22-Pin Connector, Black

B135

Positive Connection 1 (15a) (in Interior Wiring Harness)

B151

Positive Connection 3 (30a) (in Interior Wiring Harness)

*

Refer to Applicable A/C System Wiring Diagram

*2

Refer to the Applicable Multimedia System Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
