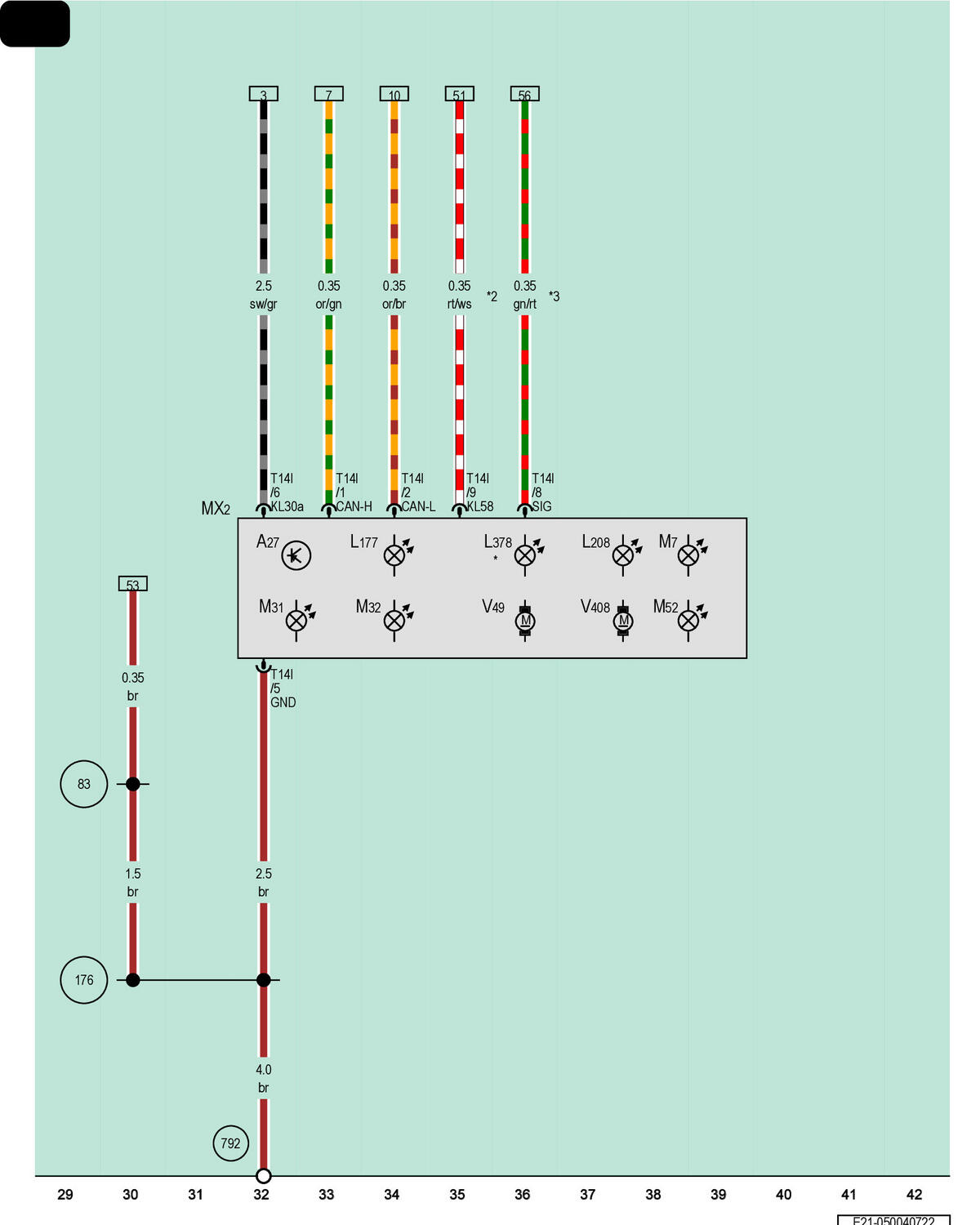

Right Front Headlamp
A27
Right LED Headlamp Power Output Module 1
L177
Right Daytime Running Lamp and Position Lamp LED Module
L208
Right Variable Headlamp Bulb
L378
Right Daytime Running Lamp LED Module
MX2
Right Front Headlamp
M7
Right Front Turn Signal Bulb
M31
Right Low Beam Headlamp Bulb
M32
Right High Beam Headlamp Bulb
M52
Right Stationary Cornering Lamp
T14l
14-Pin Connector, Black
V49
Right Headlamp Range Control Adjustment Motor
V408
Right Headlamp Fan
83
Ground Connection 1 (in Right Front Wiring Harness)
176
Ground Connection (in Right Headlamp Wiring Harness)
792
Ground Connection in Right Front Wheel Housing
*
For Vehicles Without Top Sport Equipment
*2
For Vehicles with Ambient Lighting
*3
For Vehicles with Top Sport Equipment
