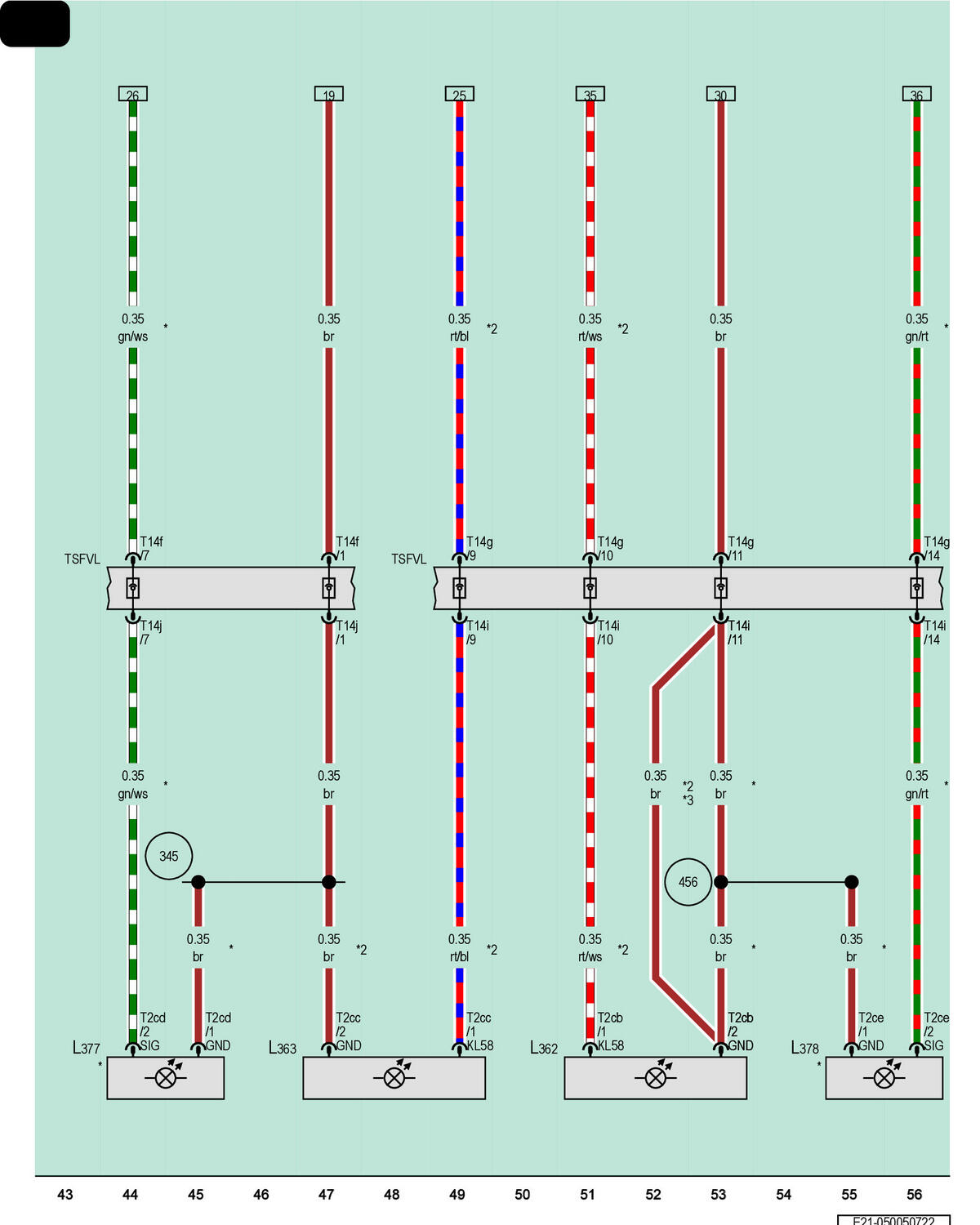

Fiber Optic Cable For Contour Illumination In Right Front Radiator Grille, Fiber Optic Cable For Contour Illumination In Left Front Radiator Grille
L362
Fiber Optic Cable for Contour Illumination in Right Front Radiator Grille
L363
Fiber Optic Cable for Contour Illumination in Left Front Radiator Grille
L377
Left Daytime Running Lamp LED Module
L378
Right Daytime Running Lamp LED Module
T2cb
2-Pin Connector, Black
T2cc
2-Pin Connector, Black
T2cd
2-Pin Connector, Black
T2ce
2-Pin Connector, Black
T14f
14-Pin Connector, Black
T14g
14-Pin Connector, Brown
T14i
14-Pin Connector, Brown
T14j
14-Pin Connector, Black
TSFVL
Coupling Point on Left Front Bumper
345
Ground Connection (in Bumper Wiring Harness)
456
Ground Connection 1 (in Front Bumper Wiring Harness)
*
For Vehicles with Top Sport Equipment
*2
For Vehicles with Ambient Lighting
*3
For Vehicles Without Top Sport Equipment
