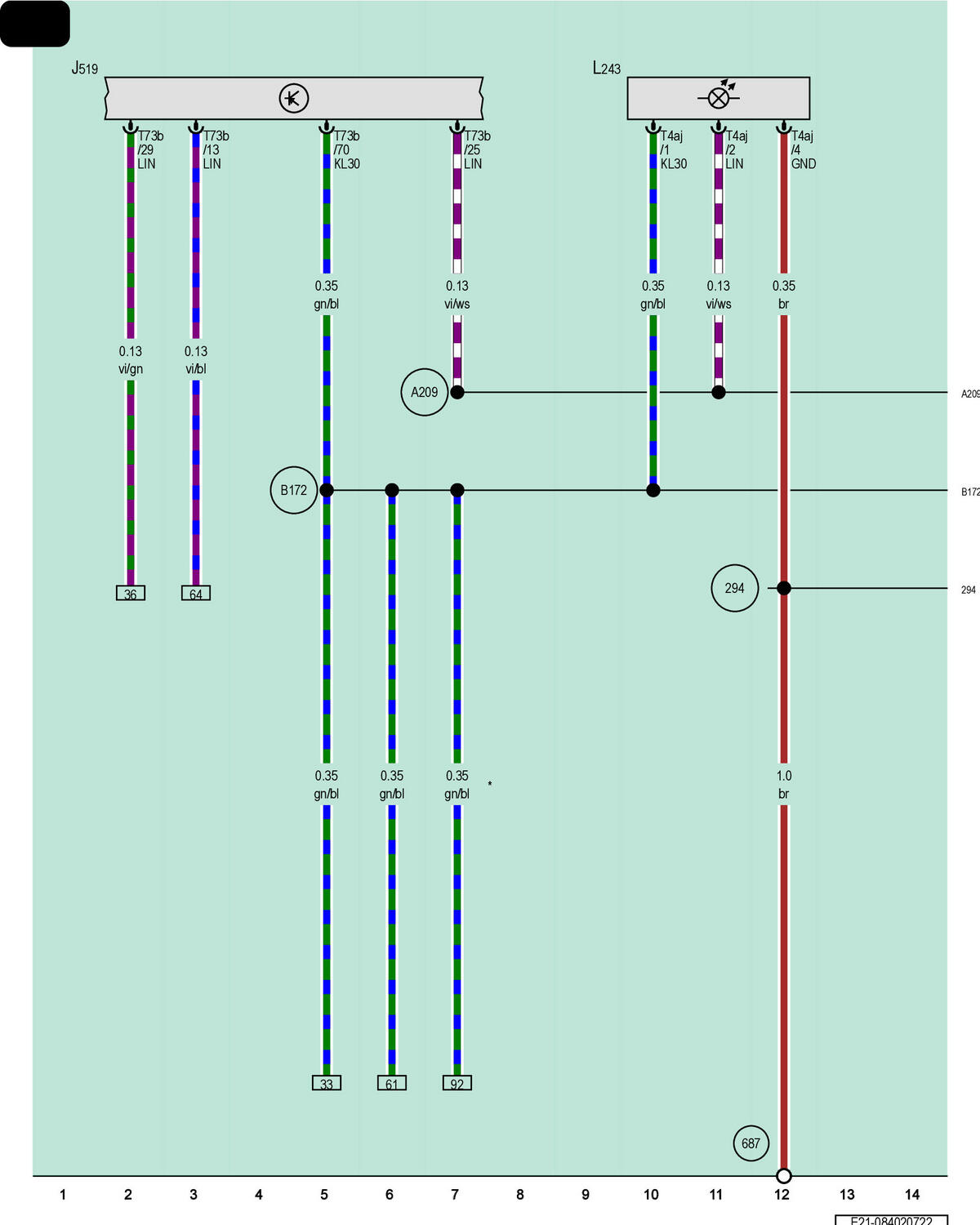

Vehicle Electrical System Control Module, Instrument Panel Contour Illumination Lamp 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

L243

Instrument Panel Contour Illumination Lamp 1

T4aj

4-Pin Connector, Black

T73b

73-Pin Connector, Black

294

Ground Connection 9 (in Interior Wiring Harness)

687

Ground Connection 1 on Center Tunnel

A209

LIN Bus Connection 1 (in Instrument Panel Wiring Harness)

B172

Positive Connection 4 (30) (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Interior Lamps
