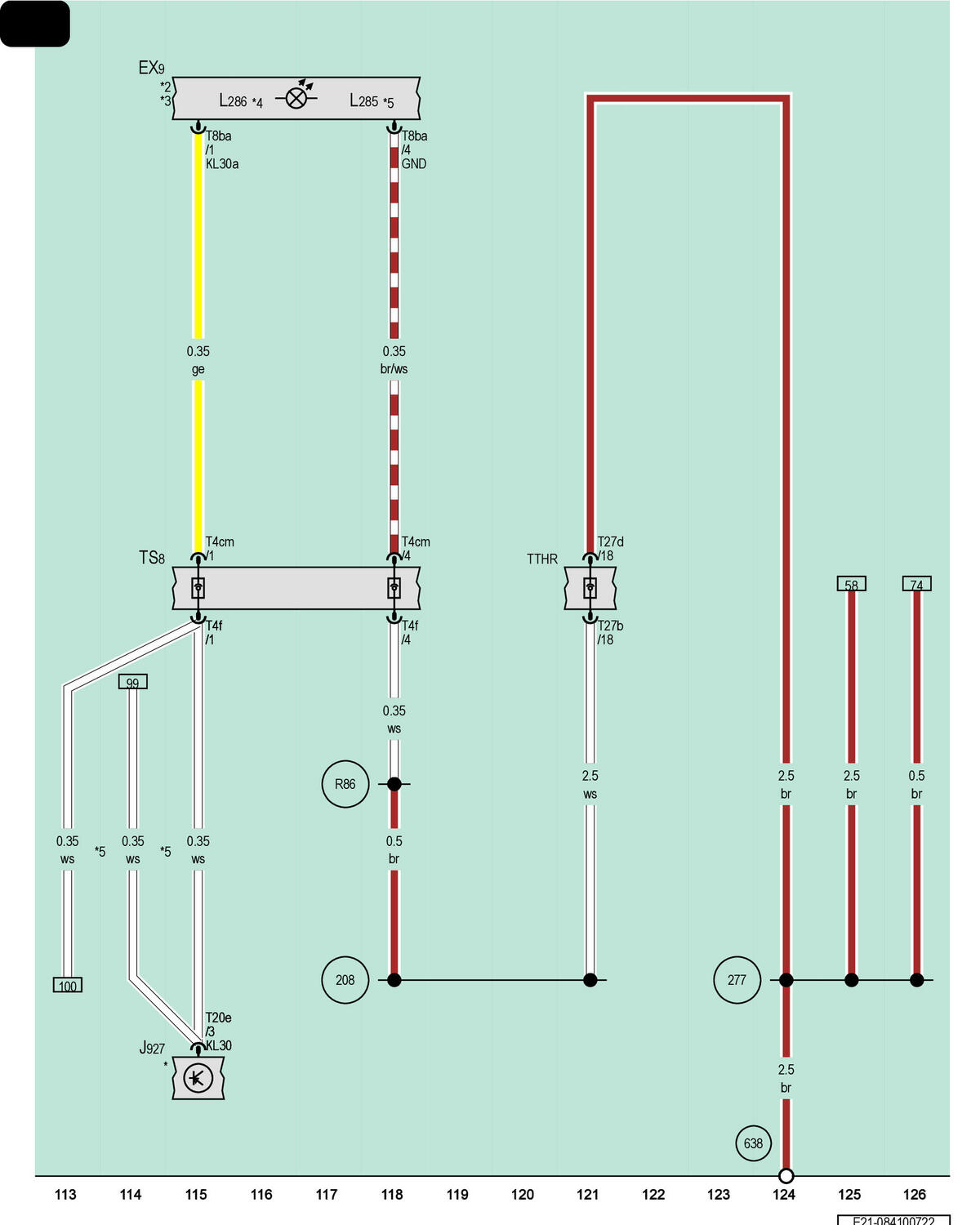

Right Rear Exterior Door Handle, Passenger Side Rear Door Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX9

Right Rear Exterior Door Handle

J927

Passenger Side Rear Door Control Module

L285

Driver Side Rear Exterior Door Handle Illumination Lamp

L286

Passenger Side Rear Exterior Door Handle Illumination Lamp

T4cm

4-Pin Connector, White

T4f

4-Pin Connector, Black

T8ba

8-Pin Connector, Gray

T20e

20-Pin Connector, White

T27b

27-Pin Connector, Black

T27d

27-Pin Connector, Black

TS8

Coupling Point 2 in Right Rear Door

TTHR

Right Rear Door Coupling Point

208

Ground Connection (in Right Rear Door Wiring Harness)

277

Ground Connection 3 (in Interior Wiring Harness)

638

Ground Connection on Right A-Pillar

R86

Central Locking Connection 1 (in Right Rear Door Wiring Harness)

*

Refer to Applicable Front Passenger Door Control Module Wiring Diagram

*2

Pre-Wired Component

*3

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*4

For LHD Vehicles

*5

For RHD Vehicles
