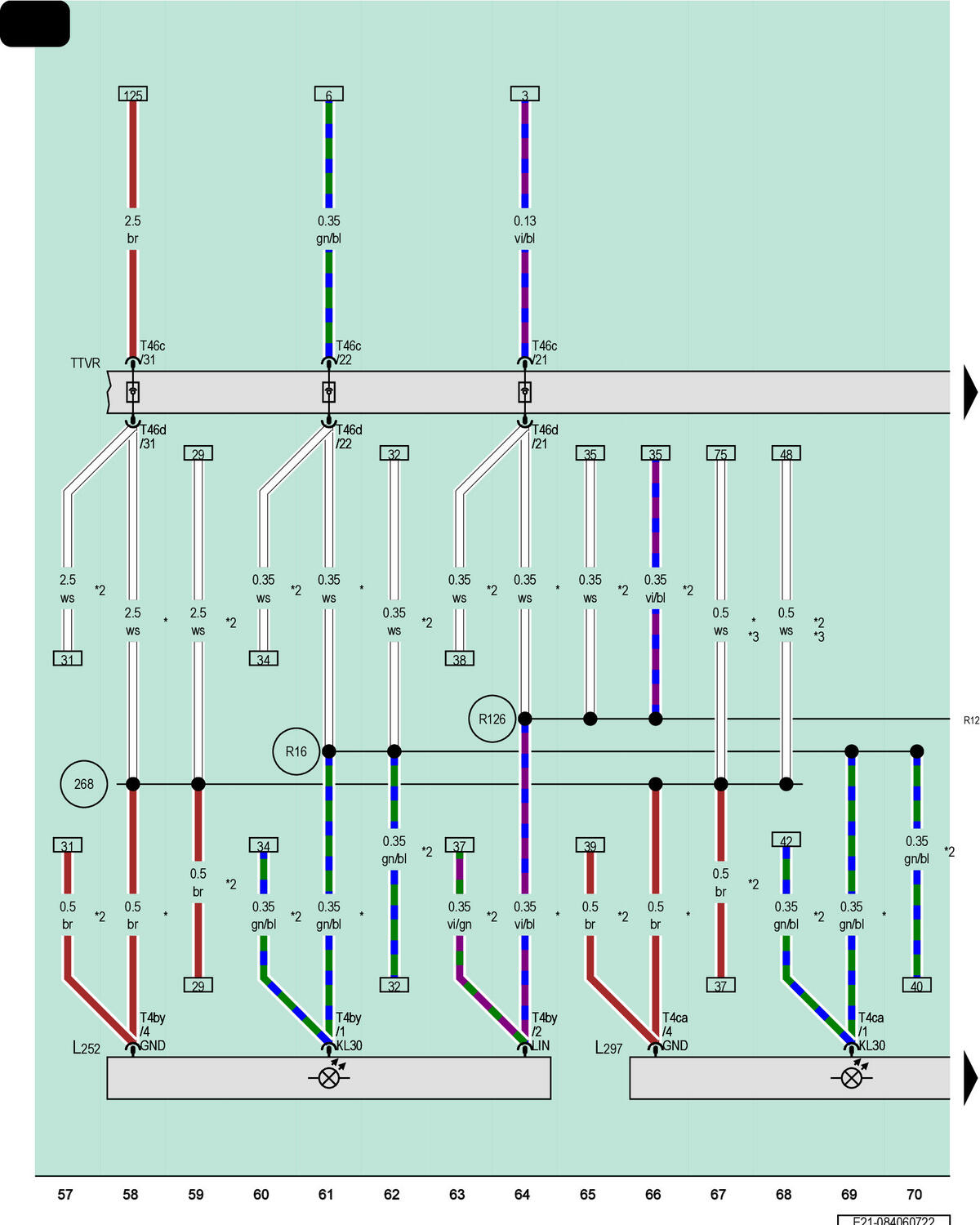

Right Front Door Contour Illumination Lamp, Right Front Door Contour Illumination Lamp 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

L252

Right Front Door Contour Illumination Lamp

L297

Right Front Door Contour Illumination Lamp 2

T4by

4-Pin Connector, Black

T4ca

4-Pin Connector, Black

T46c

46-Pin Connector, Black

T46d

46-Pin Connector, Black

TTVR

Right Front Door Coupling Point

268

Ground Connection 2 (in Front Passenger Door Wiring Harness)

R16

Positive Connection 1 (30) (in Front Passenger Door Wiring Harness)

R126

LIN Bus Connection (in Front Passenger Side Door Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles

*3

From November 2020
