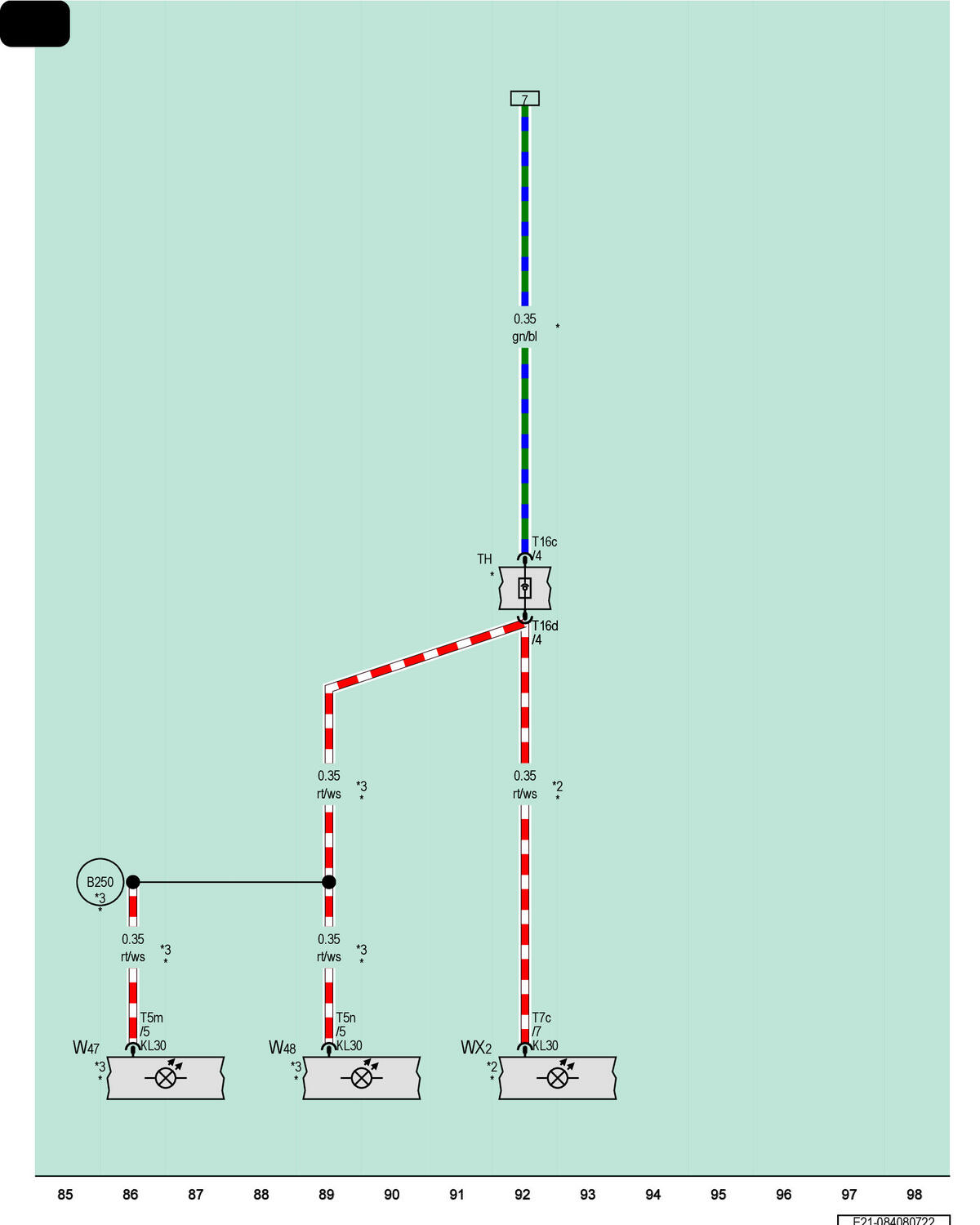

Rear Interior Lamp, Left Rear Interior Lamp, Right Rear Interior Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

T5m

5-Pin Connector, Black

T5n

5-Pin Connector, Black

T7c

7-Pin Connector, Black

T16c

16-Pin Connector, Brown

T16d

16-Pin Connector, Brown

TH

Coupling Point on Roof

WX2

Rear Interior Lamp

W47

Left Rear Interior Lamp

W48

Right Rear Interior Lamp

B250

Positive Connection (in Roof Wiring Harness)

*

Refer to Applicable Wiring Diagram for Interior Lamps

*2

For Vehicles Without a Sliding/Tilting Sunroof

*3

For Vehicles with a Sunroof
