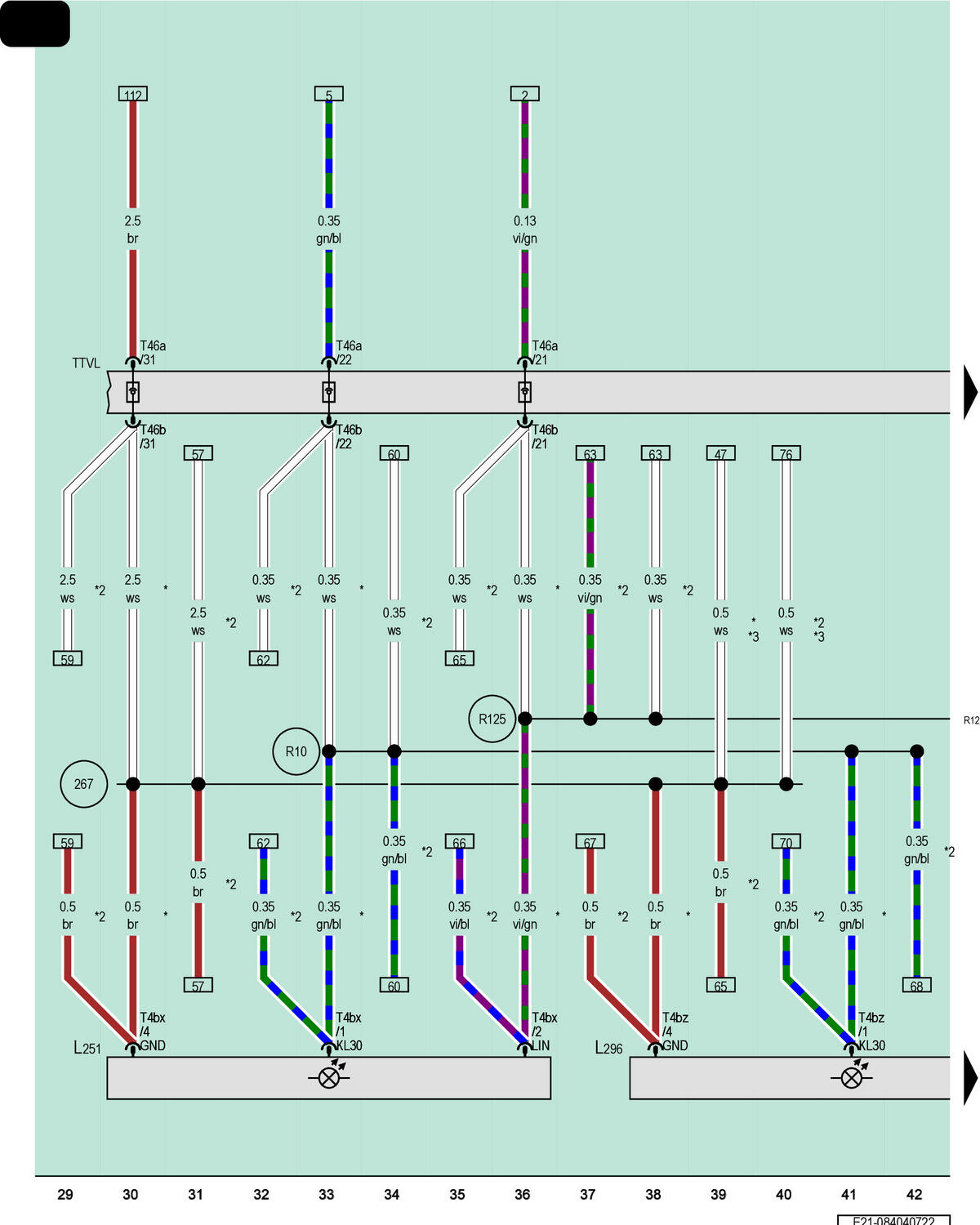

Left Front Door Contour Illumination Lamp, Left Front Door Contour Illumination Lamp 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

L251

Left Front Door Contour Illumination Lamp

L296

Left Front Door Contour Illumination Lamp 2

T4bx

4-Pin Connector, Black

T4bz

4-Pin Connector, Black

T46a

46-Pin Connector, Black

T46b

46-Pin Connector, Black

TTVL

Left Front Door Coupling Point

267

Ground Connection 2 (in Driver Door Wiring Harness)

R10

Positive Connection 1 (30) (in Driver Door Wiring Harness)

R125

LIN Bus Connection (in Driver Side Door Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles

*3

From November 2020
