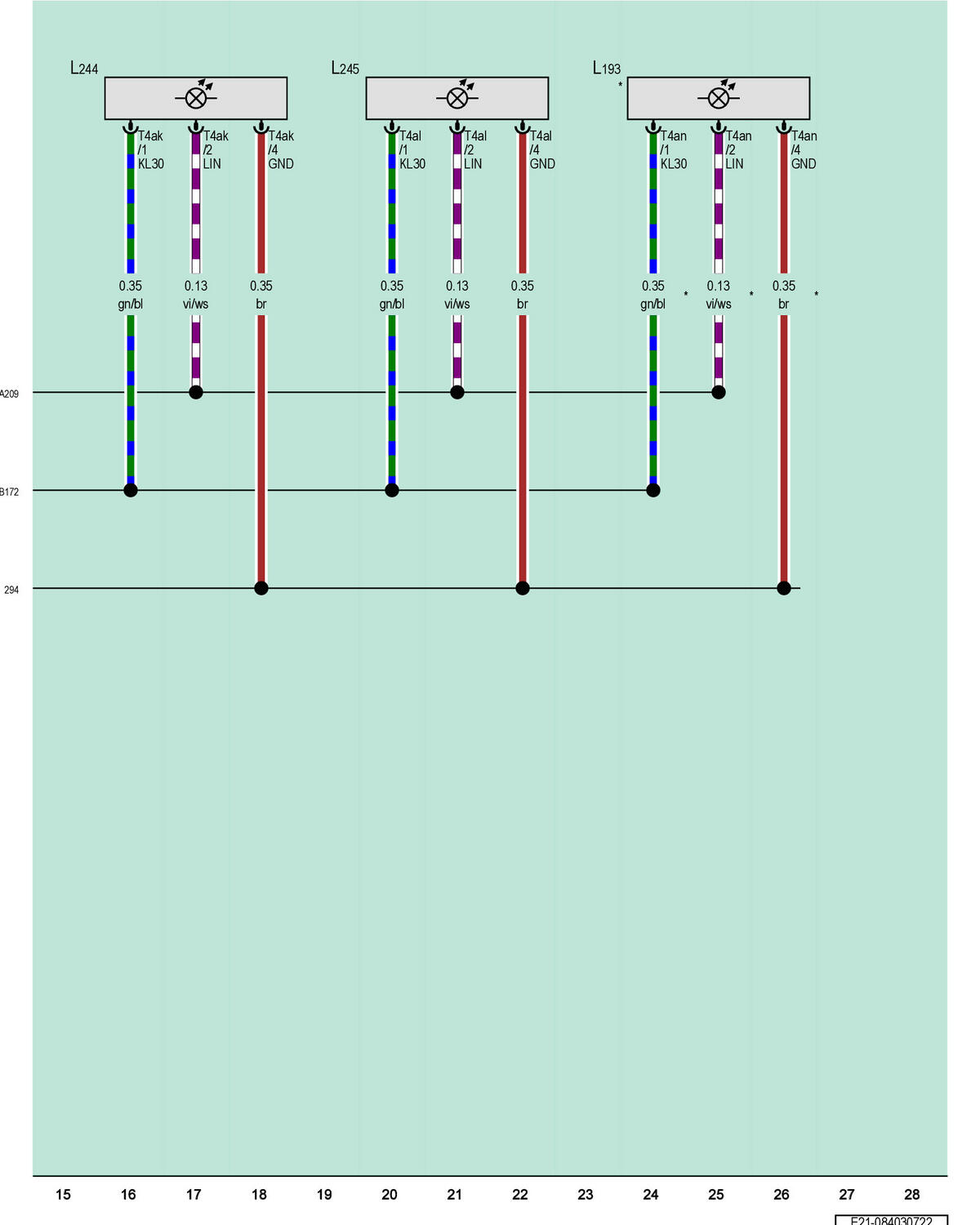

Front Center Console Ambient Lighting Bulb 1, Instrument Panel Contour Illumination Lamp 2, Instrument Panel Contour Illumination Lamp 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

L193

Front Center Console Ambient Lighting Bulb 1

L244

Instrument Panel Contour Illumination Lamp 2

L245

Instrument Panel Contour Illumination Lamp 3

T4ak

4-Pin Connector, Black

T4al

4-Pin Connector, Black

T4an

4-Pin Connector, Black

294

Ground Connection 9 (in Interior Wiring Harness)

A209

LIN Bus Connection 1 (in Instrument Panel Wiring Harness)

B172

Positive Connection 4 (30) (in Interior Wiring Harness)

*

Not for USA
