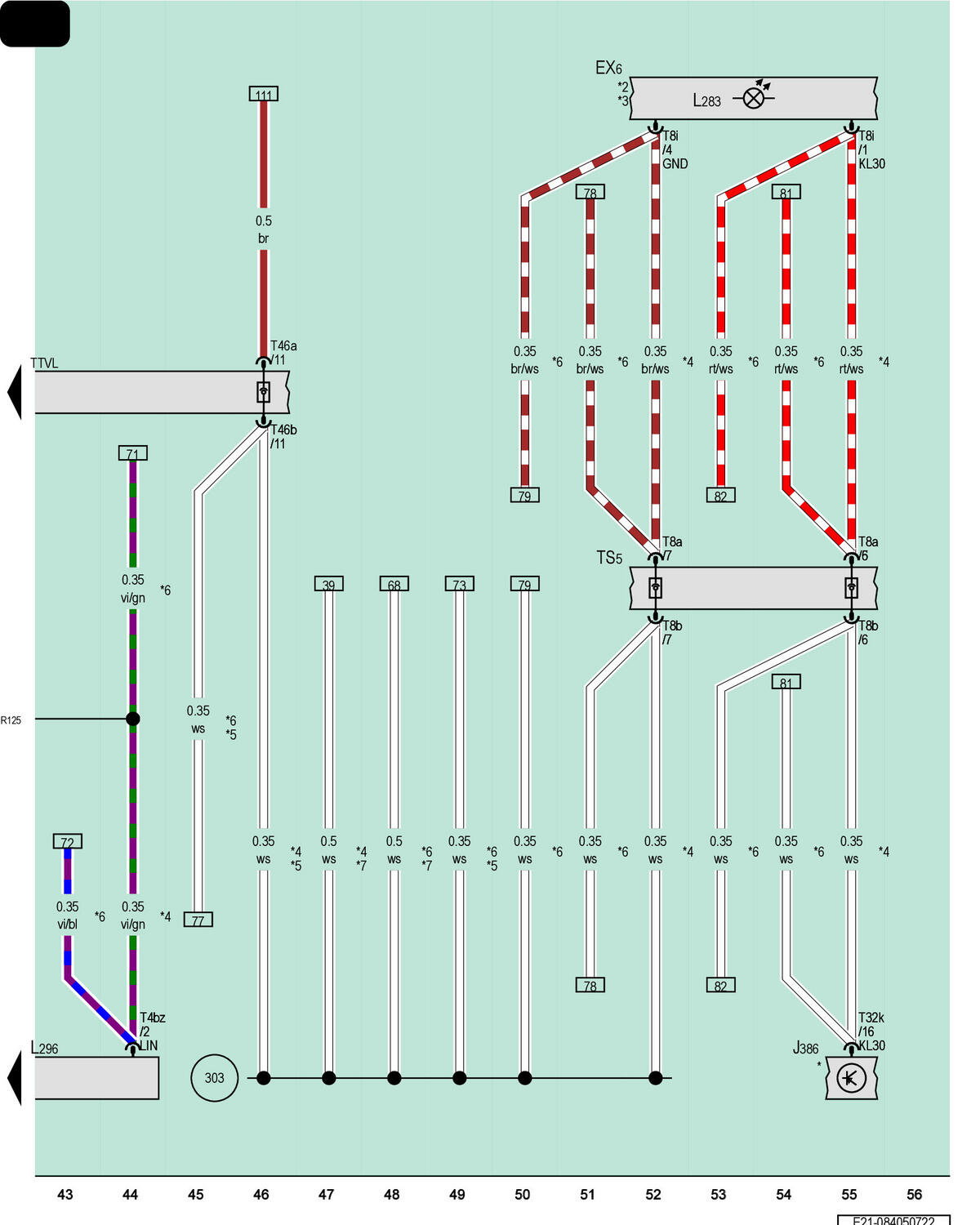

Driver Exterior Door Handle, Left Front Door Contour Illumination Lamp 2
EX6
Driver Exterior Door Handle
J386
Driver Door Control Module
L283
Driver Side Exterior Door Handle Illumination Lamp
L296
Left Front Door Contour Illumination Lamp 2
T4bz
4-Pin Connector, Black
T8a
8-Pin Connector, Black
T8b
8-Pin Connector, Black
T8i
8-Pin Connector, Blue
T32k
32-Pin Connector, Blue
T46a
46-Pin Connector, Black
T46b
46-Pin Connector, Black
TS5
Coupling Point 2 in Left Front Door
TTVL
Left Front Door Coupling Point
303
Ground Connection 3 (in Driver Door Wiring Harness)
R125
LIN Bus Connection (in Driver Side Door Wiring Harness)
*
Refer to Applicable Driver Door Control Module Wiring Diagram
*2
Pre-Wired Component
*3
Refer to the Applicable Access/Start Authorization System Wiring Diagram
*4
For LHD Vehicles
*5
Through November 2020
*6
For RHD Vehicles
*7
From November 2020
