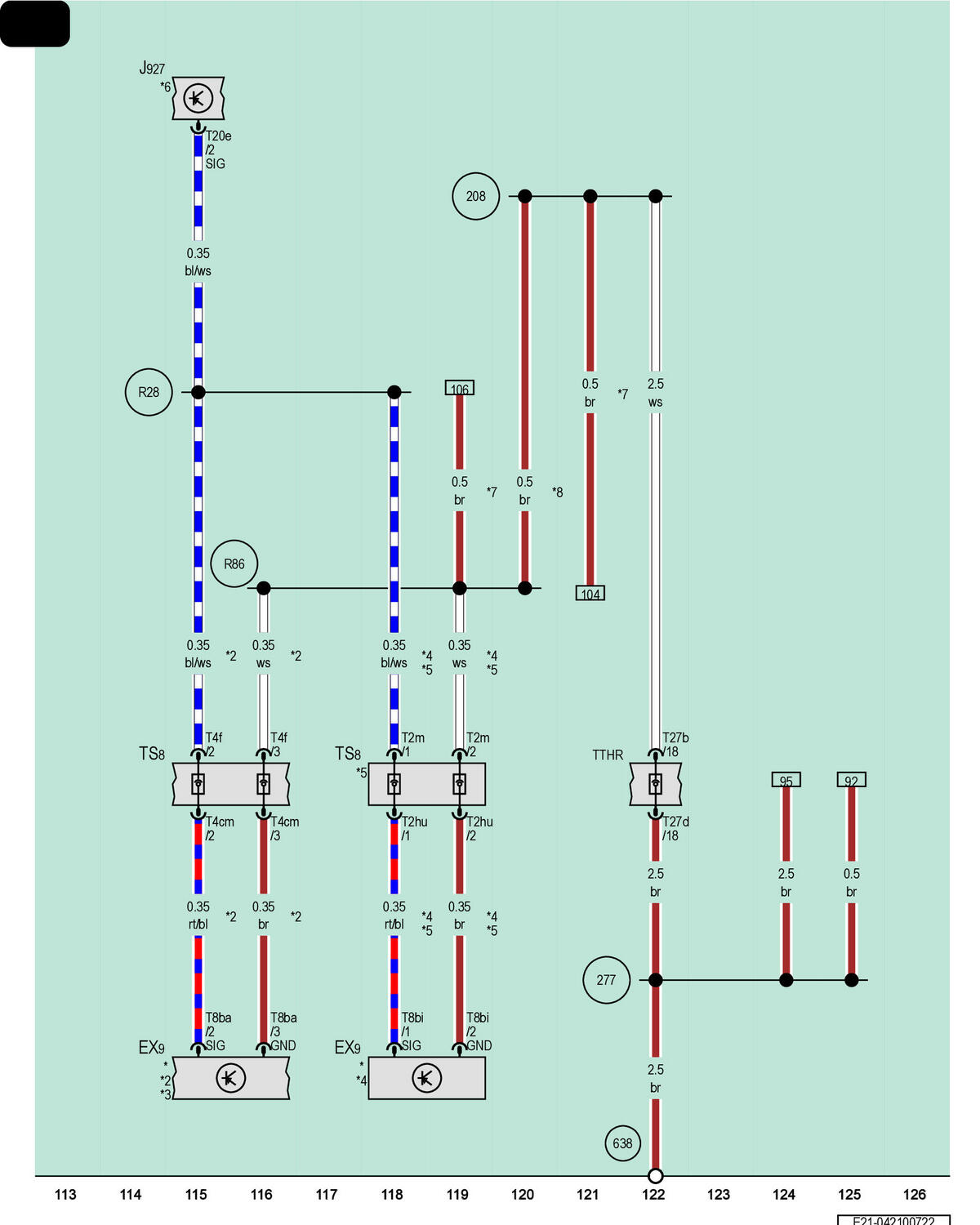

Right Rear Exterior Door Handle, Passenger Side Rear Door Control Module
EX9
Right Rear Exterior Door Handle
J927
Passenger Side Rear Door Control Module
T2hu
2-Pin Connector, Red
T2m
2-Pin Connector, Red
T4cm
4-Pin Connector, White
T4f
4-Pin Connector, Black
T8ba
8-Pin Connector, Gray
T8bi
8-Pin Connector, Black
T20e
20-Pin Connector, White
T27b
27-Pin Connector, Black
T27d
27-Pin Connector, Black
TS8
Coupling Point 2 in Right Rear Door
TTHR
Right Rear Door Coupling Point
208
Ground Connection (in Right Rear Door Wiring Harness)
277
Ground Connection 3 (in Interior Wiring Harness)
638
Ground Connection on Right A-Pillar
R28
Door Contact Switch Connection 2 (in Rear Wiring Harness)
R86
Central Locking Connection 1 (in Right Rear Door Wiring Harness)
*
Pre-Wired Component
*2
For Vehicles with Ambient Lighting
*3
Refer to Applicable Ambient Lighting Wiring Diagram
*4
For Vehicles Without Ambient Lighting
*5
Not for USA
*6
Refer to Applicable Front Passenger Door Control Module Wiring Diagram
*7
For RHD Vehicles
*8
For LHD Vehicles
