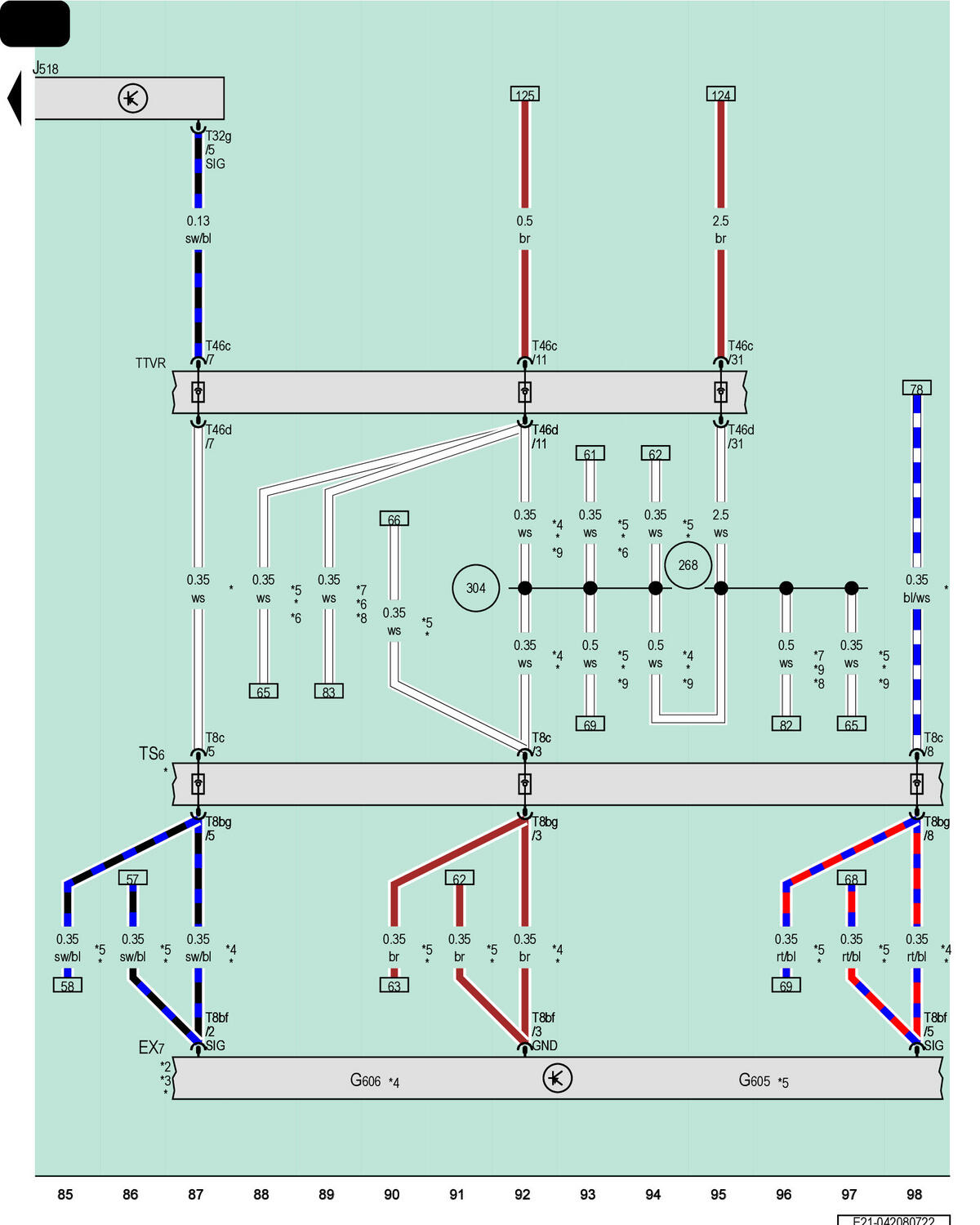

Front Passenger Exterior Door Handle, Access/Start Authorization Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX7

Front Passenger Exterior Door Handle

G605

Left Front Exterior Door Handle Touch Sensor

G606

Right Front Exterior Door Handle Touch Sensor

J518

Access/Start Authorization Control Module

T8bf

8-Pin Connector, Blue

T8bg

8-Pin Connector, Black

T8c

8-Pin Connector, Black

T32g

32-Pin Connector, Gray

T46c

46-Pin Connector, Black

T46d

46-Pin Connector, Black

TS6

Coupling Point 2 in Right Front Door

TTVR

Right Front Door Coupling Point

268

Ground Connection 2 (in Front Passenger Door Wiring Harness)

304

Ground Connection 3 (in Front Passenger Door Wiring Harness)

*

For Vehicles with Ambient Lighting

*2

Pre-Wired Component

*3

Refer to Applicable Ambient Lighting Wiring Diagram

*4

For LHD Vehicles

*5

For RHD Vehicles

*6

Through November 2020

*7

For Vehicles Without Ambient Lighting

*8

Not for USA

*9

From November 2020
