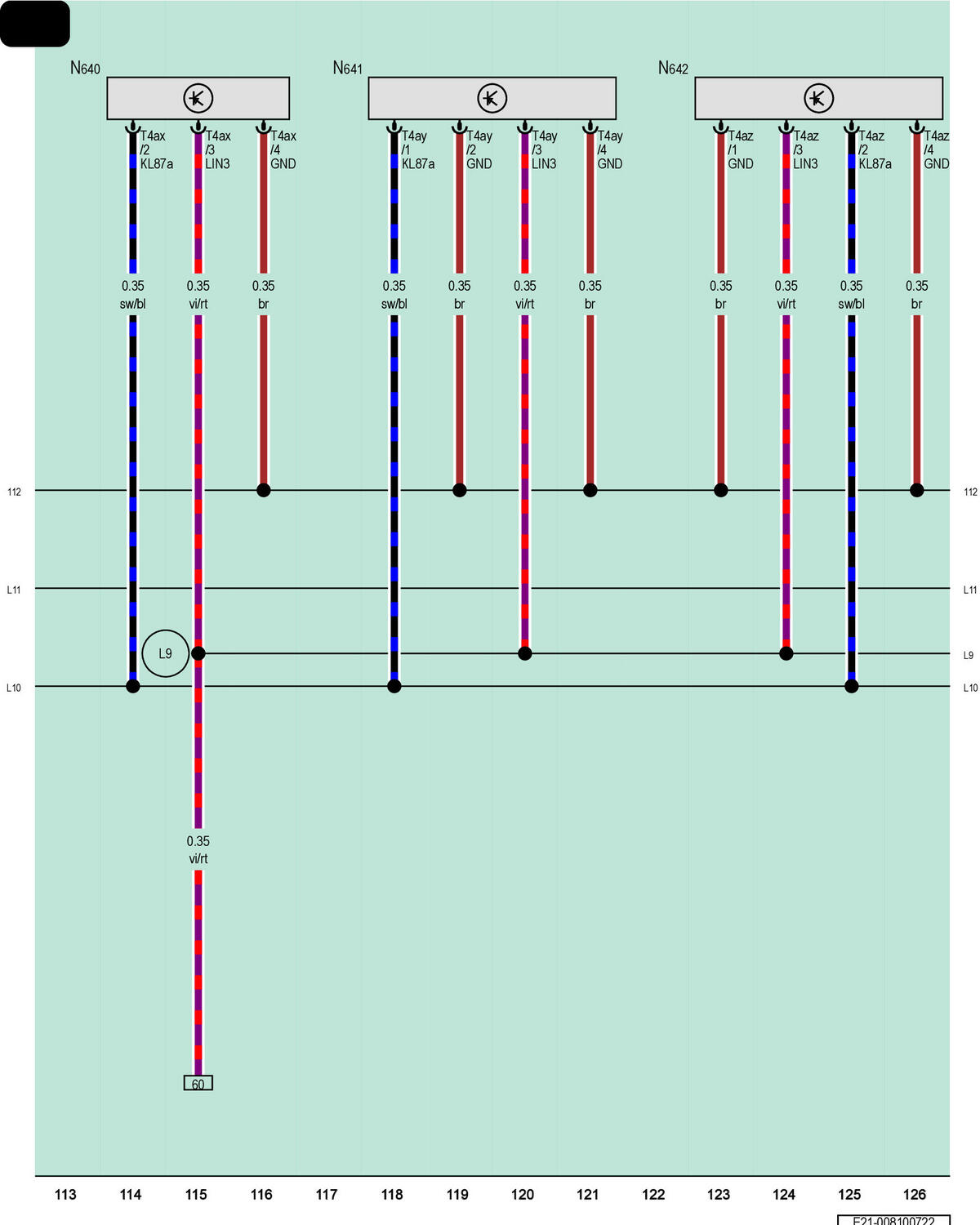

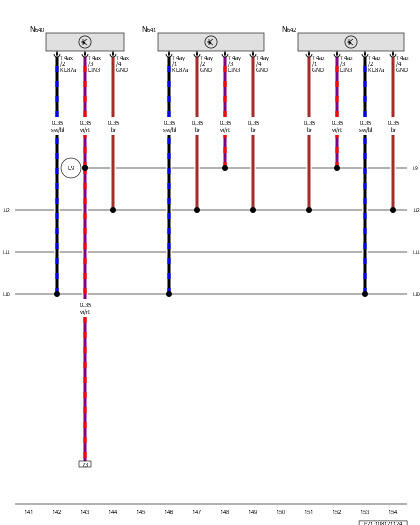

Refrigerant Shut-Off Valve 2, Refrigerant Shut-Off Valve 3, Refrigerant Shut-Off Valve 4

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

N640

Refrigerant Shut-Off Valve 2

N641

Refrigerant Shut-Off Valve 3

N642

Refrigerant Shut-Off Valve 4

T4ax

4-Pin Connector, Black

T4ay

4-Pin Connector, Black

T4az

4-Pin Connector, Black

112

Ground Connection 2 (in A/C Wiring Harness)

L9

Connection 1 (in A/C System Wiring Harness)

L10

Connection 2 (in A/C System Wiring Harness)

L11

Connection 3 (in A/C System Wiring Harness)
