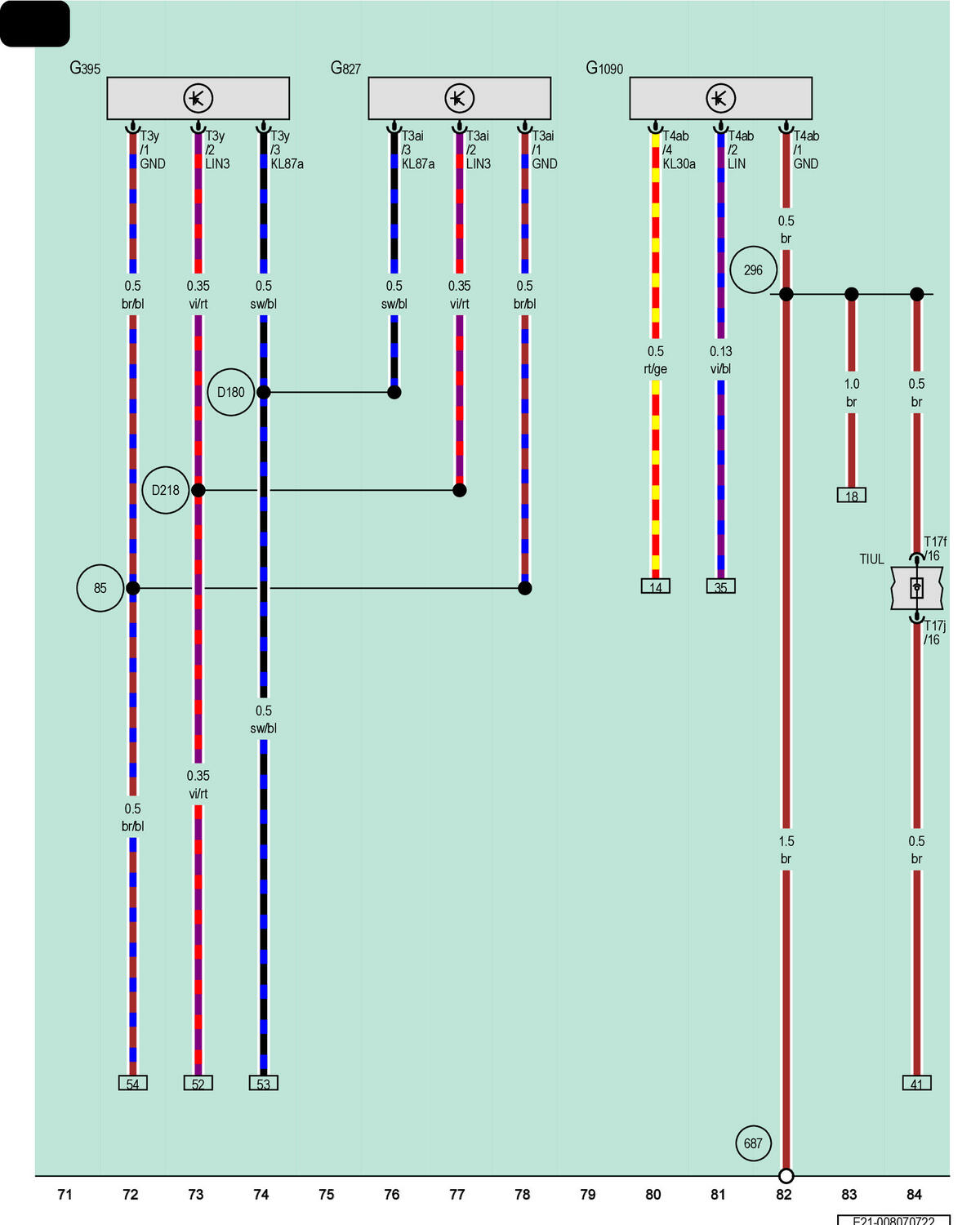

A/C Pressure/Temperature Sensor, A/C Pressure/Temperature Sensor 3, Vehicle Interior Temperature Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G395

A/C Pressure/Temperature Sensor

G827

A/C Pressure/Temperature Sensor 3

G1090

Vehicle Interior Temperature Sensor

T3ai

3-Pin Connector, Brown

T3y

3-Pin Connector, Black

T4ab

4-Pin Connector, Black

T17f

17-Pin Connector, Brown

T17j

17-Pin Connector, Brown

TIUL

Coupling Point in Interior, Bottom Left

85

Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)

296

Ground Connection 11 (in Interior Wiring Harness)

687

Ground Connection 1 on Center Tunnel

D180

Connection 87A (in Engine/Motor Compartment Wiring Harness)

D218

Connection 1 (LIN Bus) (in Engine/Motor Compartment Wiring Harness)
