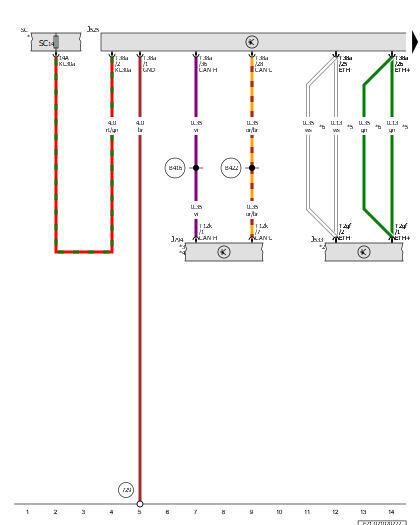

Digital Sound System Control Module, Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Fuse Panel C
J525
Digital Sound System Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
SC
Fuse Panel C
SC14
Fuse 14 (On Fuse Panel C)
T2gf
2-Pin Connector, White
T12k
12-Pin Connector, Gray
T38a
38-Pin Connector, Black
729
Ground Connection on Left Rear Wheel Housing
B416
Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)
B422
Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to the Applicable Ethernet Network Data Bus Wiring Diagram
*3
Refer to the Applicable Multimedia System Wiring Diagram
*4
Refer to the Applicable Infotainment CAN Bus Network Data Bus Wiring Diagram
*5
Through June 2022
*6
From June 2022
