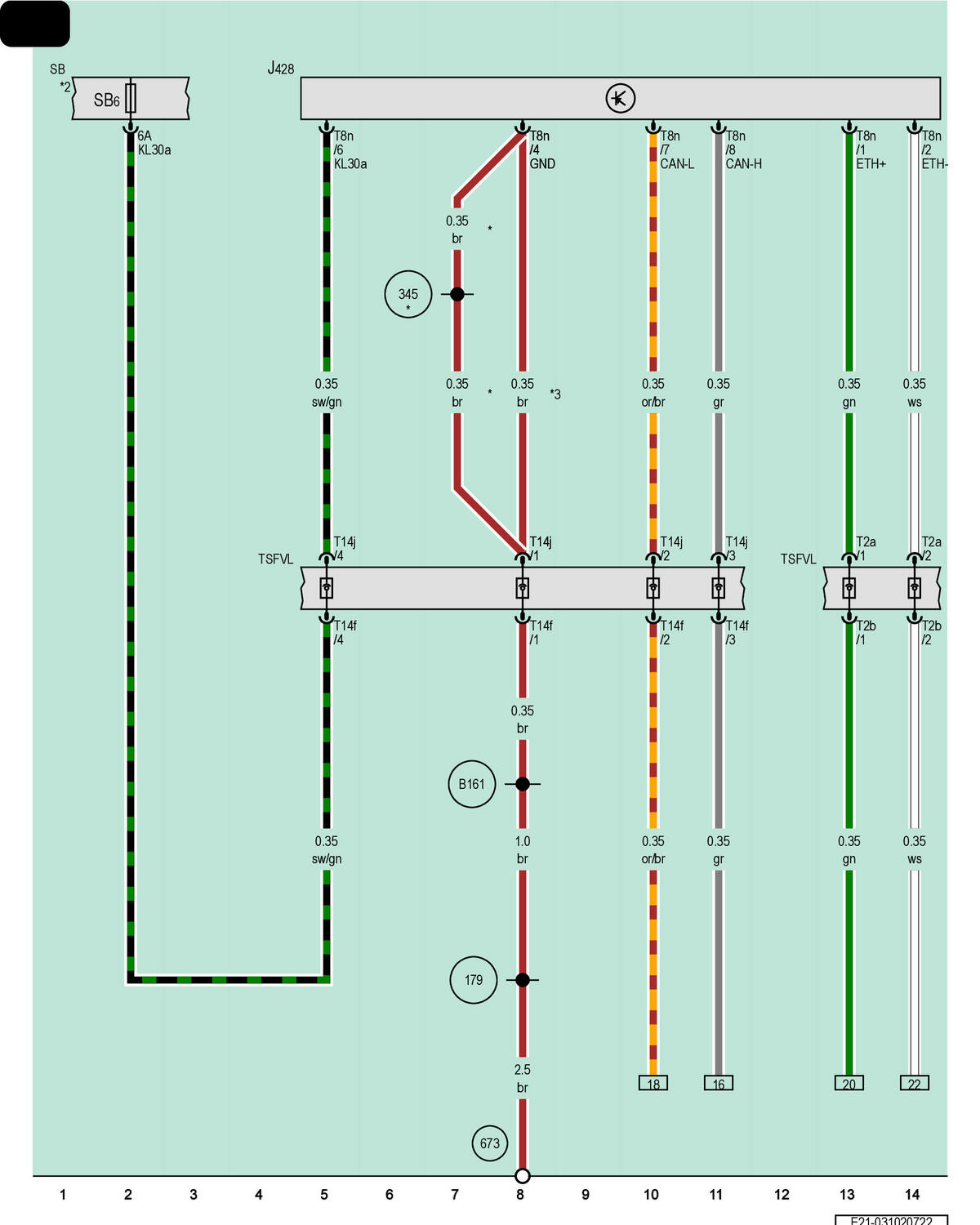

Control Module For Adaptive Cruise Control, Fuse Panel B
J428
Control Module for Adaptive Cruise Control
SB
Fuse Panel B
SB6
Fuse 6 (On Fuse Panel B)
T2a
2-Pin Connector, White
T2b
2-Pin Connector, White
T8n
8-Pin Connector, Black
T14f
14-Pin Connector, Black
T14j
14-Pin Connector, Black
TSFVL
Coupling Point on Left Front Bumper
179
Ground Connection (in Left Headlamp Wiring Harness)
345
Ground Connection (in Bumper Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
B161
Anti-Theft Alarm System Connection (in Interior Wiring Harness)
*
For Vehicles with Ambient Lighting
*2
Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
*3
For Vehicles Without Ambient Lighting
