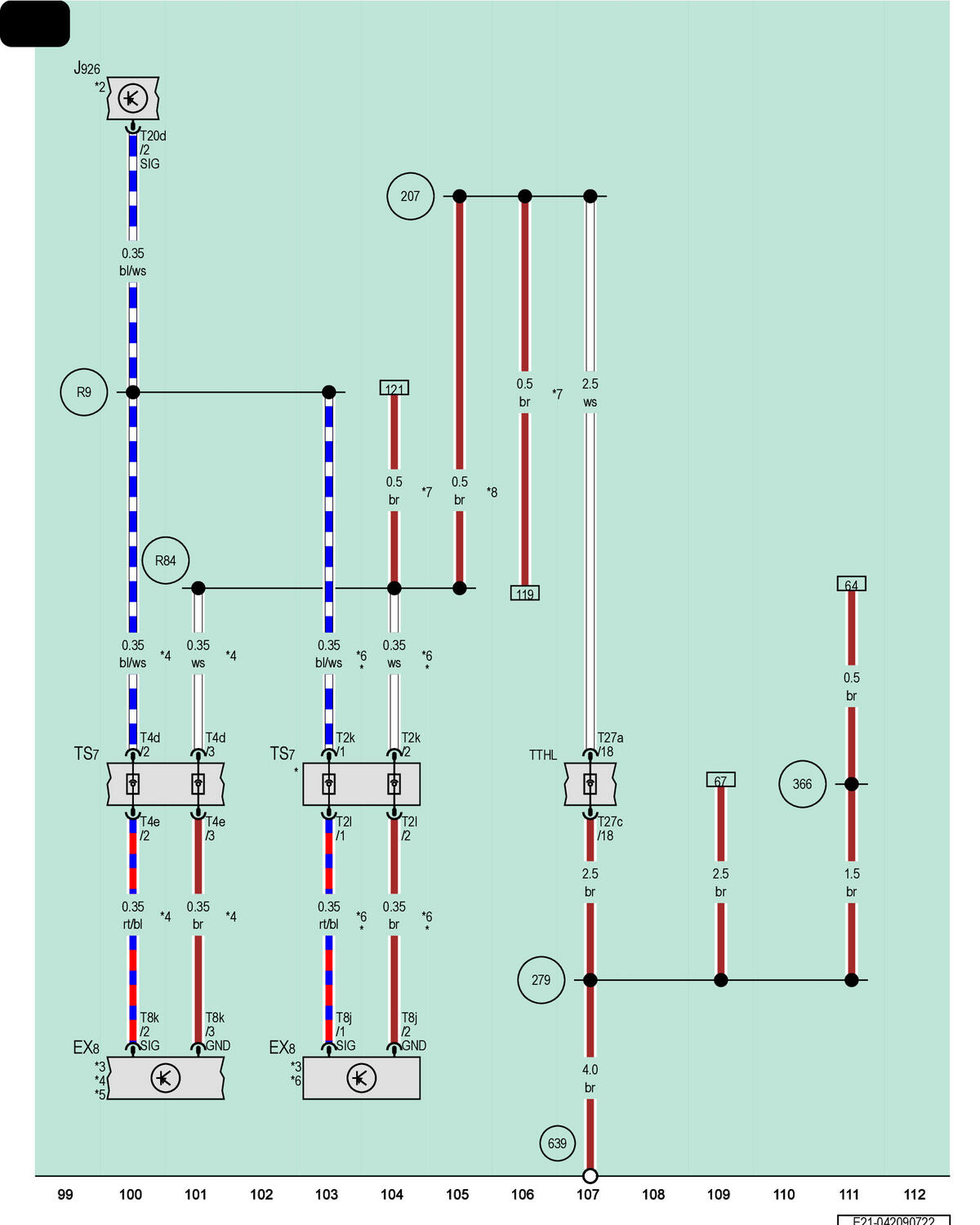

Left Rear Exterior Door Handle, Driver Side Rear Door Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX8

Left Rear Exterior Door Handle

J926

Driver Side Rear Door Control Module

T2k

2-Pin Connector, Red

T2l

2-Pin Connector, Red

T4d

4-Pin Connector, Black

T4e

4-Pin Connector, White

T8j

8-Pin Connector, Black

T8k

8-Pin Connector, Gray

T20d

20-Pin Connector, White

T27a

27-Pin Connector, Black

T27c

27-Pin Connector, Black

TS7

Coupling Point 2 in Left Rear Door

TTHL

Left Rear Door Coupling Point

207

Ground Connection (in Left Rear Door Wiring Harness)

279

Ground Connection 5 (in Interior Wiring Harness)

366

Ground Connection 1 (in Main Wiring Harness)

639

Ground Connection on Left A-Pillar

R9

Door Contact Switch Connection (in Rear Wiring Harness)

R84

Central Locking Connection 1 (in Left Rear Door Wiring Harness)

*

Not for USA

*2

Refer to Applicable Driver Door Control Module Wiring Diagram

*3

Pre-Wired Component

*4

For Vehicles with Ambient Lighting

*5

Refer to Applicable Ambient Lighting Wiring Diagram

*6

For Vehicles Without Ambient Lighting

*7

For RHD Vehicles

*8

For LHD Vehicles
