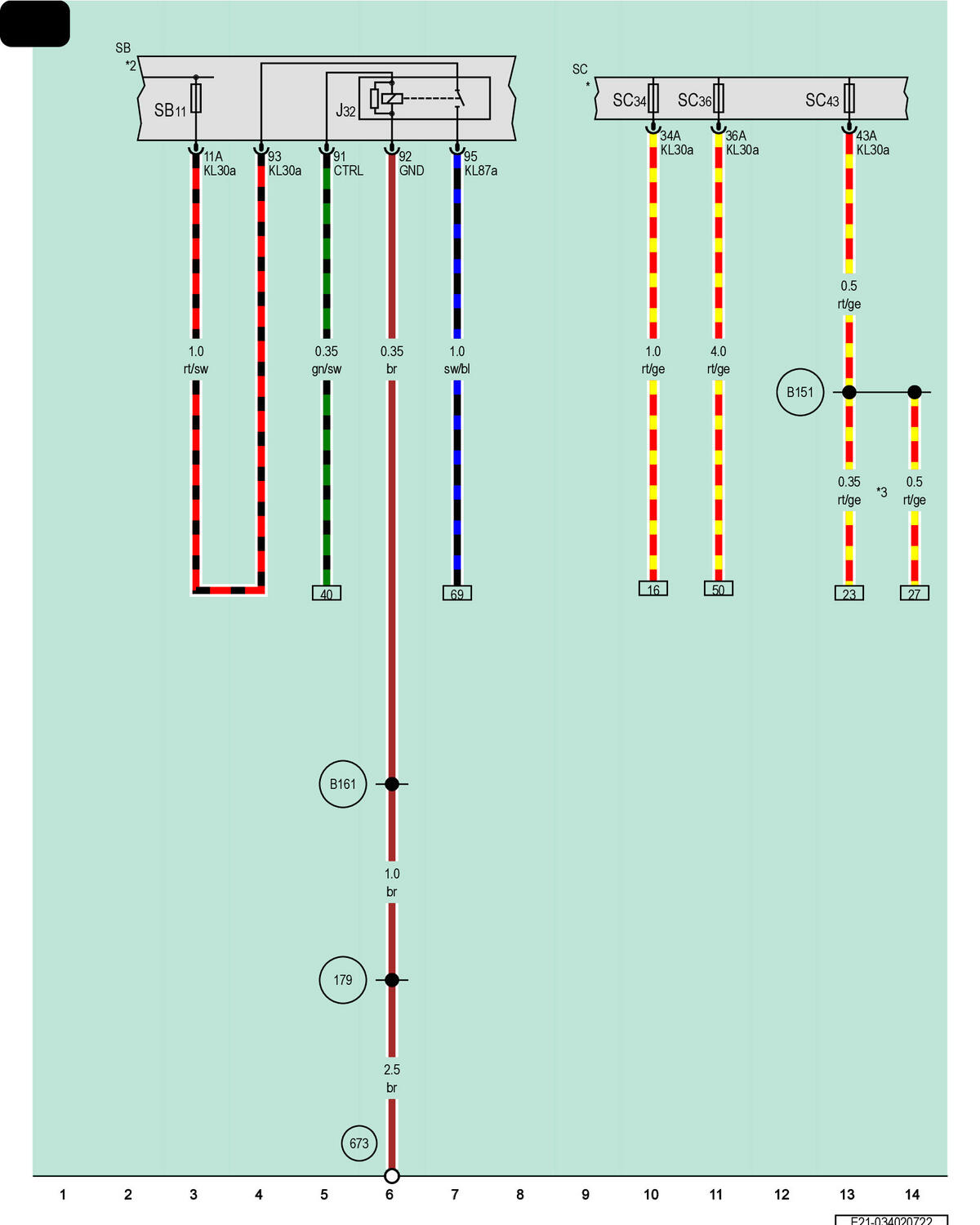

Fuse Panel B, Fuse Panel C

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

J32

A/C Relay

SB

Fuse Panel B

SB11

Fuse 11 (On Fuse Panel B)

SC

Fuse Panel C

SC34

Fuse 34 (On Fuse Panel C)

SC36

Fuse 36 (On Fuse Panel C)

SC43

Fuse 43 (On Fuse Panel C)

179

Ground Connection (in Left Headlamp Wiring Harness)

673

Ground Connection 3 on Left Front Longitudinal Member

B151

Positive Connection 3 (30a) (in Interior Wiring Harness)

B161

Anti-Theft Alarm System Connection (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*3

For Vehicles with 3-Zone Temperature Control
